Mitutoyo Digimatic QuantuMike Micrometers IP65 0-25mm, 25-50mm, 50-75mm, 75-100mm

Product Description

£228.00 (ex VAT)

Please email us for shipping times

Delivery price: £5.99 Delivery price: £8.99

This is an IP65 micrometer offering movement four times as fast as a standard micrometer. It presents you with the following benefits:

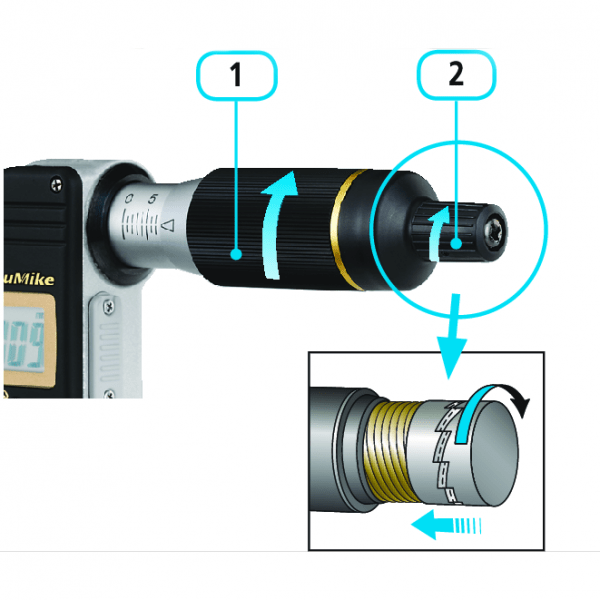

Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.
Extraordinary battery life of 2.4 years
Outstanding accuracy
Ratched thimble mechanism ensures easy single-handed or stand operation.
Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining sit.

0-25mm Micrometer Features:

Range: 0-25mm (0-1″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.001mm (0.00004″)
IP65 Protected: Waterproof (coolant & dust resistant)
2mm travel per thimble rotation
Carbide measuring faces, micro lap finish
Ratchet thimble
Inch-mm conversion
Thimble and Sleeve scale
Hold function
MPN: 293-185-30
Brand: Mitutoyo

25-50mm Micrometer Features:

Range: 25mm-50mm (1-2″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.001mm (0.00004″)
IP65 Protected: Waterproof (coolant & dust resistant)
2mm travel per thimble rotation
Carbide measuring faces, micro lap finish
Ratchet thimble
Battery Life: 2.4 Years
No data output
Inch-mm conversion
Hold function
Auto Power OFF after 20 min non use
Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 0.5mm
MPN: 293-186-30
Brand: Mitutoyo

50-75mm Micrometer Features:

Range: 50mm-75mm (2-3″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.001mm (0.00005″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.002mm (0.00008″)
IP65 Protected: Waterproof (coolant & dust resistant)
2mm travel per thimble rotation
Carbide measuring faces, micro lap finish
Ratched thimble
Inch-mm conversion
Hold function
Auto Power OFF after 20 min non use
Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 2mm
MPN: 293-187-30
Brand: Mitutoyo

75-100mm Micrometer Features:

Range: 75mm-100mm (3-4″)
Resolution: 0.001mm (0.00005″)
Accuracy: ±0.002mm (0.0001″)
Flatness: 0.0003mm (0.000012″)
Parallelism: 0.002mm (0.00008″)
IP65 Protected: Waterproof (coolant & dust resistant)
2mm travel per thimble rotation
Carbide measuring faces, micro lap finish
Ratchet thimble
Battery Life: 2.4 Years
No data output
Inch-mm conversion
Hold function
Auto Power OFF after 20 min non use
Measuring Spindle: with spindle lock, 6.35mm diameter, spindle pitch 2mm
MPN: 293-188-30
Brand: Mitutoyo
