Dial test indicators also known as a lever DTI or finger indicator, has a smaller measuring range than a standard dial indicator. A test indicator measures the deflection of the arm, the probe does not retract but swings in an arc around its hinge point.
Dial Test Indicators ( Lever )
Mahr MarTest 800 EW Digital Test Indicator | Range ± 0.4 mm | Resolution 0.001mm
Dial Test Indicators (Digital)
Mahr MarTest 800 EW Digital Test Indicator | Range ± 0.4 mm | Resolution 0.001mm
£371.70
Digital test indicator MarTest 800 EW Factory standard Measuring range mm: ± 0.4 mm Resolution mm/inch: 0.001 / .00005" Package contains: mounting shaft 800a8, spanner for changing the styli, stylus dia. ø 2 mm, c Inductive measuring system, battery life of approx. 2 years Water- and coolant-resistant display unit IP65 Combined analog and dig...
Mahr MarTest 800 H Dial Test Indicator | Range ± 0.4 mm | Graduation 0.01mm | DIN 2270
Dial Test Indicators
Mahr MarTest 800 H Dial Test Indicator | Range ± 0.4 mm | Graduation 0.01mm | DIN 2270
£117.45
Test indicator MarTest 800 H DIN 2270 Measuring range mm: ± 0.4 mm Graduation value mm: 0.01 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or damage caused...
Mahr MarTest 800 S Dial Test Indicator | Range ± 0.4 mm | Graduation 0.01mm | DIN 2270
Dial Test Indicators
Mahr MarTest 800 S Dial Test Indicator | Range ± 0.4 mm | Graduation 0.01mm | DIN 2270
£96.00
Test indicator MarTest 800 S DIN 2270 Measuring range mm: ± 0.4 mm Graduation value mm: 0.01 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or damage caused ...
Mahr MarTest 800 SG Dial Test Indicator | Range ± 0.4 mm | Graduation 0.01mm | DIN 2270
Dial Test Indicators
Mahr MarTest 800 SG Dial Test Indicator | Range ± 0.4 mm | Graduation 0.01mm | DIN 2270
£96.00
Test indicator MarTest 800 SG DIN 2270 Measuring range mm: ± 0.4 mm Graduation value mm: 0.01 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or damage ca...
Mahr MarTest 800 SGB Dial Test Indicator | Range ± 0.5 mm | Graduation 0.01mm
Dial Test Indicators
Mahr MarTest 800 SGB Dial Test Indicator | Range ± 0.5 mm | Graduation 0.01mm
£179.10
Test indicator MarTest 800 SGB Factory standard Measuring range mm: ± 0.5 mm Graduation value mm: 0.01 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a6 (800 SA/SGA/SGB), mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best...
Mahr MarTest 800 SGE Dial Test Indicator | Range ± 0.5 mm | Graduation 0.01mm
Dial Test Indicators
Mahr MarTest 800 SGE Dial Test Indicator | Range ± 0.5 mm | Graduation 0.01mm
£179.10
Test indicator MarTest 800 SGB Factory standard Measuring range mm: ± 0.5 mm Graduation value mm: 0.01 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a6 (800 SA/SGA/SGB), mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best...
Mahr MarTest 800 SGL Dial Test Indicator | Range ± 0.25 mm | Graduation 0.01mm
Dial Test Indicators
Mahr MarTest 800 SGL Dial Test Indicator | Range ± 0.25 mm | Graduation 0.01mm
£167.40
Test indicator MarTest 800 SGL Factory standard Measuring range mm: ± 0.25 mm Graduation value mm: 0.01 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or dam...
Mahr MarTest 800 SGM Dial Test Indicator | Range ± 0.1 mm | Graduation 0.002mm | DIN 2270
Dial Test Indicators
Mahr MarTest 800 SGM Dial Test Indicator | Range ± 0.1 mm | Graduation 0.002mm | DIN 2270
£137.00
Test indicator MarTest 800 SGM DIN 2270 Measuring range mm: ± 0.1 mm Graduation value mm: 0.002 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or damage cau...
Mahr MarTest 800 SL Dial Test Indicator | Range ± 0.25 mm | Graduation 0.01mm
Dial Test Indicators
Mahr MarTest 800 SL Dial Test Indicator | Range ± 0.25 mm | Graduation 0.01mm
£154.00
Test indicator MarTest 800 SL Factory standard Measuring range mm: ± 0.25 mm Graduation value mm: 0.01 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or ...
Mahr MarTest 800 SM Dial Test Indicator | Range ± 0.1 mm | Graduation 0.002mm | DIN 2270
Dial Test Indicators
Mahr MarTest 800 SM Dial Test Indicator | Range ± 0.1 mm | Graduation 0.002mm | DIN 2270
£124.00
Test indicator MarTest 800 SM DIN 2270 Measuring range mm: ± 0.1 mm Graduation value mm: 0.002 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or damage c...
Mahr MarTest 800 SR Dial Test Indicator | Range ± 0.8 mm | Graduation 0.01mm
Dial Test Indicators
Mahr MarTest 800 SR Dial Test Indicator | Range ± 0.8 mm | Graduation 0.01mm
£168.30
Test indicator MarTest 800 SR Factory standard Measuring range mm: ± 0.8 mm Graduation value mm: 0.01 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or dama...
Mahr MarTest 800 SRM Dial Test Indicator | Range ± 0.2 mm | Graduation 0.002mm
Dial Test Indicators
Mahr MarTest 800 SRM Dial Test Indicator | Range ± 0.2 mm | Graduation 0.002mm
£192.15
Test indicator MarTest 800 SRM Factory standard Measuring range mm: ± 0.2 mm Graduation value mm: 0.002 Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8 High contrast dial face, sealed with an O-Ring Mineral glass viewing panel for best protection:- against scratching or da...
Moore & Wright Dial Test Indicator 420 Series 0.01mm
£60.63
FeaturesStandard: ANSI B89.1.10, DIN2270Automatic reversal of measuring directionHigh precision fully jewelled bearingsRotating dialTwo dovetail clampsCarbide pointsStyli length: 12mm / 1/2", M1.4 thread Range 0.8mm Dial reading 0- 40 - 0 Dial diameter 25 or 37mm
Moore & Wright Dial Test Indicator 421 Series 0.002mm
£80.51
FeaturesStandard: ANSI B89.1.10, DIN2270Automatic reversal of measuring directionHigh precision fully jewelled bearingsRotating dialTwo dovetail clampsCarbide pointsStyli length: 12mm / 1/2" Range 0.2mm Dial reading 0- 100 - 0 Dial diameter 25 or 37mm
Moore & Wright Dial Test Indicator 422 Series 0.01mm / 0.0005"
£88.00
FeaturesStandard: ANSI B89.1.10, DIN2270Automatic reversal of measuring directionHigh precision fully jewelled bearingsRotating dialTwo dovetail clampsCarbide pointsStyli length: 12mm / 1/2", M1.4 thread Range 0.8mm Dial reading 0- 40 - 0 Dial diameter 25 or 37mm
Kafer K33 Dial Test Indicator K33 0.01mm long styli
£126.00
Reading 0.01mm Range 0.5mm Bezel 32mm Carbide Contact Point: 35.7mm long High quality Dial Test Indicators. They are both sensitive and shock-resistant Range 0.5mm Form A to DIN 2270. Accuracy according to DIN 2270
Kafer K30 Dial Test Indicator K30 0.01mm
£88.00
Reading 0.01mm Bezel 32 mm Range 0.8mm Carbide Contact Point: 12.8 mm long High quality Dial Test Indicators. They are both sensitive and shock-resistant.

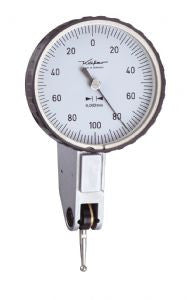

Kafer K46 Dial Test Indicator K46 0.002mm
£109.00
Reading 0.002mm Range 0.2mm Bezel 40 mm Carbide Contact Point: 12.8 mm long High quality Dial Test Indicators. They are both sensitive and shock-resistant
Baty Lever Type Dial Test Indicator
£205.00
The Baty HL series of lever-type dial test indicators are top quality, Swiss-made precision instruments. Low inertia jewelled movements and rugged construction make them suitable for universal applications in the workshop and inspection departments. FeaturesHigh sensitivity, repeatability and accuracyConforms to DIN 2270Anti-magneticAutomatic ...
Insize Dial Test Indicator 0.1mm 2380/1
£72.00
Features: Range 0.8mm Jewelled bearings Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: diameter 4mm and 8mm Comes with manufacturers inspection certificate
Insize Dial Test Indicator - Insize 0.01mm Long Styli 2383
£99.00
Features: Jewelled bearing Carbide contact point Adjustable two measuring directions Anti magnetic body Supplied with two clamps: diameter 4mm and 8mm Comes with manufacturers inspection certificate
Insize Dial Test Indicator Vertical 0.01mm 2398
£72.00
Features: Range 0.08mm Jewelled bearing Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: diameter 4mm and 8mm Comes with manufacturers inspection certificate
1.6mm Large Range Dial Test Indicator - Insize 0.01mm Grad
£119.00
Features: Jewelled bearing Carbide contact point Two measuring directions Anti magnetic body Supplied with two clamps: diameter 4mm and 8mm Comes with manufacturers inspection certificate
Dial Test Indicator - Insize
£74.00
Features: Jewelled bearing dial test indicator with carbide contact point. The indicator can work in two measuring directions, has an anti-magnetic body and is supplied with two clamps. Jewelled bearing. Carbide contact point. Two measuring directions. Anti magnetic body. Supplied with two clamps: 4 / 8mm or 5/32 / 3/8" Comes with manufacture...
Kafer K32 Dial Test Indicator 0.01mm
£120.00
Range 0.8mm Bezel 32 mm Carbide Contact Point: 12.8 mm long High quality Dial Test Indicators. They are both sensitive and shock-resistant.
Kafer K37 Dial Test Indicator K37 0.002mm
£130.00
Reading 0.002mm Range 0.2mm Bezel 32 mm Carbide Contact Point: 12.8 mm long High Quality Dial Test Indicators. They are both sensitive and shock-resistant
Moore & Wright Dial Test Indicator 420 Series 0.0005"
£60.63
FeaturesStandard: ANSI B89.1.10, DIN2270Automatic reversal of measuring directionHigh precision fully jewelled bearingsRotating dialTwo dovetail clampsStyli length: 12mm / 1/2", M1.4 thread Range 0.030" Dial 0 -15 - 0 Dial diameter 1" or 1.5" Accuracy 0.0005"
Moore & Wright Dial Test Indicator 421 Series 0.0001"
£80.51
FeaturesStandard: ANSI B89.1.10, DIN2270Automatic reversal of measuring directionHigh precision fully jewelled bearingsRotating dialTwo dovetail clampsCarbide pointsStyli length: 12mm / 1/2" Range 0.008" Dial 0-4-0 Dial diameters 1" or 1.5"
TESA Tesatast Dial Test Indicators
£135.00
Indispensable tools for workshops and measurement laboratories. Dial Indicator Features 01810007 Range: 0.5mm Resolution: 0.01mm Dial Scale: 0-0.25-0 Dial Diameter: 28mm Insert: 36.53mm Measuring Force: 0.15N Bidirectional measuring Insensitive to magnetic fields Jewelled movement with 7 rubies Measuring probe moves 240° 01810008 Range: 0.5...
TESA Swisstast Dial Test Indicators
£150.00
Indispensable tools for workshops and measurement laboratories. Indicator Features 01811000 Range: 0.8mm Resolution: 0.01mm Dial Scale: 0-0.4-0 Dial Diameter: 28mm Insert: 12.53mm Measuring Force: 0.15N Bidirectional measuring Insensitive to magnetic fields Jewelled movement with 7 rubies Measuring probe moves 240° 01811001 Range: 0.2mm Re...
TESA Tesatast Perpendicular Dial Test Indicators
£255.00
Indispensable tools for workshops and measurement laboratories. Indicator Features 01810204 Range: 0.8mm Resolution: 0.01mm Dial Scale: 0-0.4-0 Dial Diameter: 28mm Insert: 12.53mm Measuring Force: 0.15N Bidirectional measuring Insensitive to magnetic fields Jewelled movement with 7 rubies Measuring probe moves 240° 01810205 Range: 0.5mm Res...
TESA Tesatast Lateral Dial Test Indicators
£240.00
Indispensable tools for workshops and measurement laboratories. Indicator Features 01810011 Range: 0.8mm Resolution: 0.01mm Dial Scale: 0-0.4-0 Dial Diameter: 28mm Insert: 12.53mm 01810012 Range: 2mm Resolution: 0.02mm Dial Scale: 0-1.0-0 Dial Diameter: 38mm Insert: 36.53mm 01810013 Range: 0.2mm Resolution: 0.002mm Dial Scale: 0-100-0 Di...
TESA Tesatast Lever-Type 38mm Dial Test Indicator 0.2mm (0.001mm Resolution)
Dial Test Indicators
TESA Tesatast Lever-Type 38mm Dial Test Indicator 0.2mm (0.001mm Resolution)
£175.00
Indispensable tools for workshops and measurement laboratories. Indicator Features Range: 0.2mm Resolution: 0.001mm Dial Scale: 0-0.1-0 Dial Diameter: 38mm Bidirectional measuring Insensitive to magnetic fields Jewelled movement with 7 rubies Measuring probe moves 240°
40mm Dial Face Dual-Dial Test Indicator | Range 0.6mm/0.03" | Resolution 0.01mm/0.0005"
Dial Test Indicators
40mm Dial Face Dual-Dial Test Indicator | Range 0.6mm/0.03" | Resolution 0.01mm/0.0005"
£117.00
Provides both Metric & Inch readings Fully jewelled movements Adjustable bezel Satin chrome body with dovetail on 3 sides Supplied with 6 & 8mm Spigots Replacement Spigot Codes 6mm = 55-100-060, 8mm = 55-100-080
32mm Dial Test Indicator | Range 0.8mm/0.03" | Resolution 0.01mm/0.0005"
Dial Test Indicators
32mm Dial Test Indicator | Range 0.8mm/0.03" | Resolution 0.01mm/0.0005"
£64.50
Fully jeweled movements Adjustable bezel Satin chrome body with dovetail on 3 sides Supplied with 6 & 8mm Spigots Replacement Resolution: 0.01mm/0.0005" Range: 0.8mm/0.03" Scale 0-40-0 (Metric) ) ; 0-15-0 (Imperial)
Mitutoyo 513-455-10T (0.002mm) Vertical Type Dial Test Indicator 4/8mm Stem with Bracket 0.2mm
Dial Test Indicators
Mitutoyo 513-455-10T (0.002mm) Vertical Type Dial Test Indicator 4/8mm Stem with Bracket 0.2mm
£174.00
Indicator Features: Range: 0-0.2mm Resolution: 0.002mm Accuracy: ± 0.003mm MPE any half revolution: ±0.003mm MPE any 10 scale divisions: ±0.002mm MPE Measuring range: 0.003mm Hysteresis: 0.002mm Repeatability: 0.001mm Scale: 0-100-0 Measuring Force: 0.3N or less 8mm stem Contact point thread: 1.7 x 0.35mm MPN: 513-455-10T This is a Dial Test...
Mitutoyo 513-454-10T (0.01mm) Vertical Type Dial Test Indicator 4/8mm Stem with Bracket 0.8mm
Dial Test Indicators
Mitutoyo 513-454-10T (0.01mm) Vertical Type Dial Test Indicator 4/8mm Stem with Bracket 0.8mm
£155.00
Indicator Features: Range: 0-0.8mm Resolution: 0.01mm Accuracy: ± 0.008mm MPE any half revolution: ±0.006mm MPE any 10 scale divisions: ±0.005mm MPE Measuring range: 0.008mm Hysteresis: 0.003mm Repeatability: 0.003mm Scale: 0-40-0 Measuring Force: 0.3N or less 8mm stem Contact point thread: 1.75 x 0.35mm MPN: 513-454-10T Drastically enhanced...
Mitutoyo 513-454-10E (0.01mm) Vertical Type Dial Test Indicator 0.8mm
£103.00
Indicator Features: Range: 0-0.8mm Resolution: 0.01mm Accuracy: ± 0.008mm MPE any 10 scale divisions: ±0.005mm MPE Measuring range: 0.008mm Hysteresis: 0.003mm Repeatability: 0.003mm Scale: 0-40-0 Measuring Force: 0.3N or less 8mm stem Contact point thread: 1.75 x 0.35mm MPN: 513-454-10E This is a Dial Test Indicator (Lever Type) which offers...

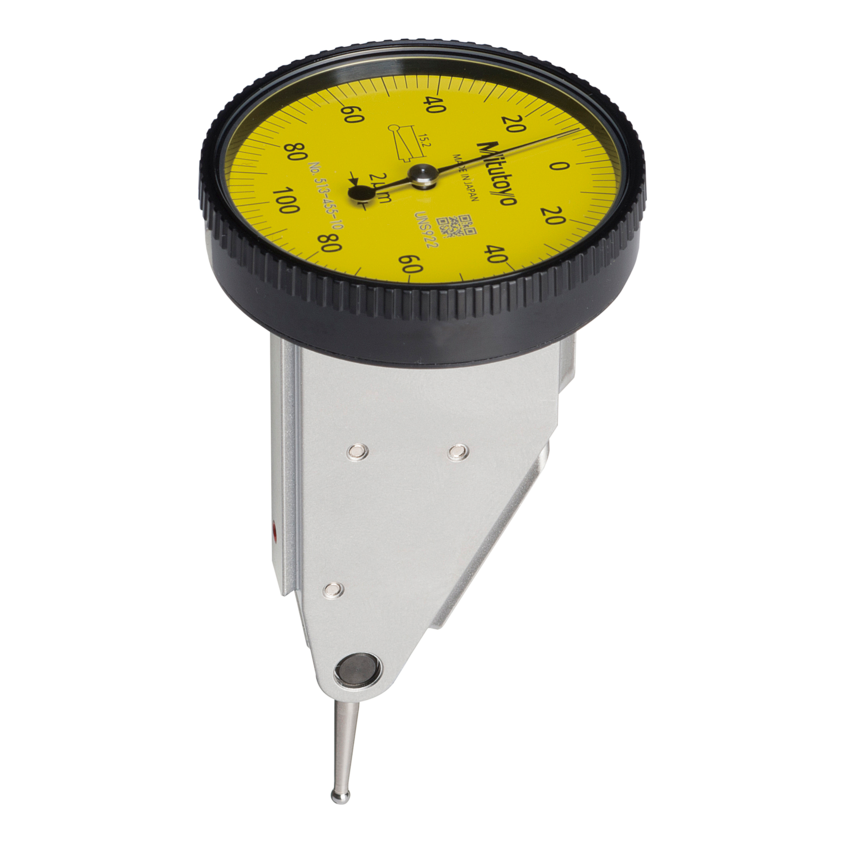

Mitutoyo 513-455-10E (0.002mm) Vertical Type Dial Test Indicator 0.2mm
£162.00
Indicator Features: Range: 0-0.2mm Resolution: 0.002mm Accuracy: ± 0.003mm MPE any half revolution: ±0.003mm MPE any 10 scale divisions: ±0.002mm MPE Measuring range: 0.003mm Hysteresis: 0.002mm Repeatability: 0.001mm Scale: 0-100-0 Measuring Force: 0.3N or less 8mm stem Contact point thread: 1.75 x 0.35mm MPN: 513-455-10E This is a Dial Test...
Starrett 3808MA Dial Test Indicator - Range 0.2mm
£117.42
These dial test indicators are offered with choices of dial size, range and include accessories. All 3808 and 3809 models have 1-1/4” (32mm) dial faces while 3908 and 3909 models offer a larger 1-9/16” (40mm) dial face. Each inch reading and metric reading 3808 and 3809 is offered with a choice of two Graduation/Range/Reading configurations. P...
Starrett 3808MAC Dial Test Indicator - Range 0.2mm
£129.80
These dial test indicators are offered with choices of dial size, range and include accessories. All 3808 and 3809 models have 1-1/4” (32mm) dial faces while 3908 and 3909 models offer a larger 1-9/16” (40mm) dial face. Each inch reading and metric reading 3808 and 3809 is offered with a choice of two Graduation/Range/Reading configurations. P...
Starrett 3809MA Dial Test Indicator - Range 0.8mm
£98.99
These dial test indicators are offered with choices of dial size, range and include accessories. All 3808 and 3809 models have 1-1/4” (32mm) dial faces while 3908 and 3909 models offer a larger 1-9/16” (40mm) dial face. Each inch reading and metric reading 3808 and 3809 is offered with a choice of two Graduation/Range/Reading configurations. P...
Starrett 811-1PZ Dial Test Indicator 0-30-0 Reading, 0-0.001" Range, 0.001" Graduation
Dial Test Indicators
Starrett 811-1PZ Dial Test Indicator 0-30-0 Reading, 0-0.001" Range, 0.001" Graduation
£520.00
Series 811 with 1-3/8" diameter adjustable face, steel contact point, and choice of red, white, or black face Balanced dial with continuous clockwise pointer rotation with automatic reversal, and ball-bearing lever system with measuring insert swivels through to 210 degrees Face can swivel from fully vertical to fully horizontal and has two dov...
40mm Dial Test Indicators | Range 0.8mm/0.03" OR 0.2mm/0.008" | Resolution 0.01mm/0.0005" OR 0.002mm/0.0001" | DIN 2270
Dial Test Indicators
40mm Dial Test Indicators | Range 0.8mm/0.03" OR 0.2mm/0.008" | Resolution 0.01mm/0.0005" OR 0.002mm/0.0001" | DIN 2270
£64.50
Fully jeweled movements Adjustable bezel Satin chrome body with dovetail on 3 sides Supplied with 6 & 8mm Spigots Replacement
32mm Vertical Dial Test Indicator | Range 0.8mm/0.03" | Resolution 0.01mm/0.0005" | DIN 2270
Dial Test Indicators
32mm Vertical Dial Test Indicator | Range 0.8mm/0.03" | Resolution 0.01mm/0.0005" | DIN 2270
£91.00
Fully jeweled movements Adjustable bezel Satin chrome body with dovetail on 3 sides Supplied with 6 & 8mm Spigots Replacement Resolution: 0.01mm/0.0005" Range: 0.8mm/0.03" Scale 0-40-0 (Metric) ) ; 0-15-0 (Imperial)
