Setting rings are most commonly used for setting bore gauges, this is the fastest most reliable method because the part to be gauged and the setting ring have the same geometric shape.
Made of hardened steel, they can come with UKAS certs if required.
Setting Ring Gauges
DML Setting Rings - up to 100mm
£48.00
Sizes up from 3mm to 100mm. Please select size from drop down box:
Bowers XT Setting Rings - Imperial
£113.35
Insize Setting Rings 1.55 - 300mm
£168.00
Calibration setting ring, for quick and accurate setting of bore gauges, micrometers etc. For zero setting of inside micrometers, three points internal micrometers and bore gauges. Uncertainty in the diameter calibration value: ±1.5µm for ü2-100mm ±2.5µm for 125-200mm. Cylindricity: 1µm for ü2-60mm 1.5µm for 62-90mm 2µm for 100-200mm. DIN2250-1...
Mahr Federal Master Setting Rings (Class XX)
£270.00
Federal system requires 1 ring, we suggest ordering class x if tolerance is greater than 0.020mm. Deliveries are: 3.0mm - 51mm 5 weeks 51 - 159mm 6 weeks
Mahr Federal Master Setting Rings (Class X)
£234.00
Manufactured to order. Deliveries are: 3.00 - 51mm 5 weeks 51 - 159mm 7 weeks
Mercer/A&E Gauges Master Setting Rings
£189.00
Mercer system requires 2 rings to set maximum & minimum range. UKAS certificate extra.
Diatest Setting Rings
£110.00
Made of wear-resistant special steel, black finished.Inside diameter lapped. During the various stages of machining the rings are subjected to an artificial aging process, which ensures that rings maintain their tolerance for many years. As with gauge blocks (slip gauges), apply grease to inside diameter of rings to protect against corrosion. Si...

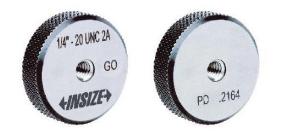

UNC Class 2A Go/No Go Ring Gauges | Insize 4121 Series
£42.00
The Insize 4121 Thread Ring gauges for gauging outside thread, to determine if the thread is within the upper/lower limits of the components tolerance. The size and form can be determined by using go and no go rings. Made from hardened alloy steel for longer tool life and durability from machine shop wear. Go and No-Go are supplied separately. ...
UNF Class 2A Go/No Go Ring Gauges | Insize 4121 Series
£92.00
The Insize 4121 Thread Ring gauges for gauging outside thread, to determine if the thread is within the upper/lower limits of the components tolerance. The size & form can be determined by using go and no go rings. Made from hardened alloy steel for longer tool life and durability from machine shop wear. Go and No-Go are supplied separately...
