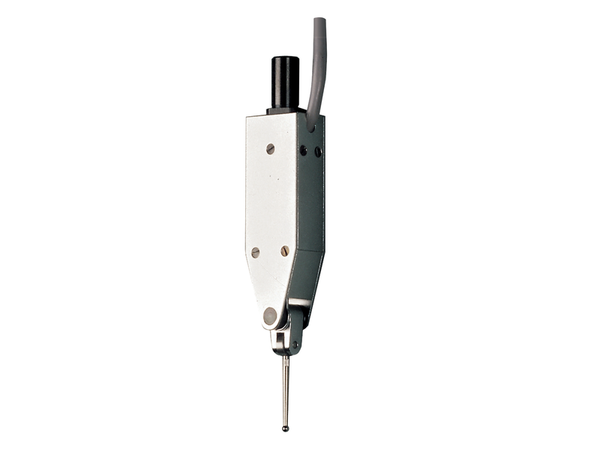

Mahr Millimar 1318 Inductive Probe

Product Description
£758.70 (ex VAT)
Usually ships in: 10-14 days
This item qualifies for free UK delivery Delivery price: £17.00
  • Dial test indicator inductive probe
  • Flexible probe adjustment to contact surface
  • Highly robust as the measuring system is recessed from the guide and mounting shaft
  • Outstanding clamping properties
  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone.
Measuring range from -0.3 mm
Measuring range up to 1 mm
Product type 1318
Distance of lower stop MAX -0.37 mm
Distance of upper stop MAX 1.6 mm
Measuring force (N) 0,25 N +/- 0,05 N
Increase in measuring force 0,04 N/mm
Sensitivity deviation 0.5 %
Repeatability fw (µm) 0.03 µm
Measuring value hysteresis fu (µm) 0.5 µm
Linearity deviation within +/- 0,3 mm 0.9 µm
IP protection category IP 50
Cable length 1.5 m
Operating temperature Min 10 °C
Operating temperature Max 40 °C
Storage temperature MIN -10 °C
Storage temperature MAX 80 °C
Compatibility Mahr LVDT
