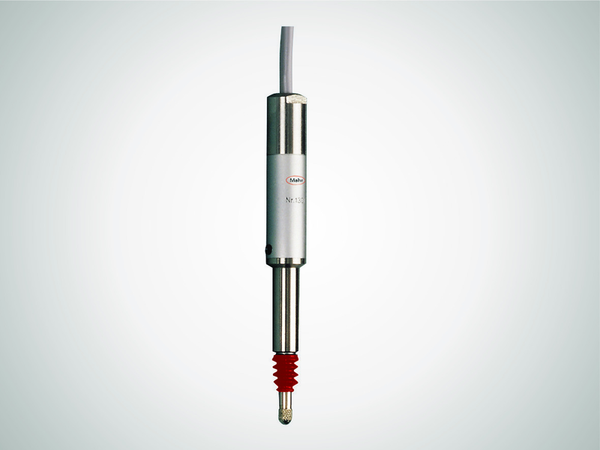

Mahr Millimar 1301

Previous Product | Next Product

Product Description

£413.10 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00

Highly robust as the measuring system is recessed from the guide and mounting shaft
Outstanding clamping properties
Measuring pin mounted in rotary stroke bearing
Measuring pin can be lifted using wire lifter
Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone

Measuring range from	-1 mm
Measuring range up to	1 mm
Product type	1301
Distance of lower stop MIN	-1.1 mm
Distance of lower stop MAX	0 mm
Distance of upper stop MAX	2.7 mm
Lifter / retraction	Cable release
Measuring force (N)	0,75 N +/- 0,15 N
Increase in measuring force	0,4 N/mm
Sensitivity deviation	0.3 %
Repeatability fw (µm)	0.1 µm
Measuring value hysteresis fu (µm)	0.2 µm
Linearity deviation within +/- 0,5 mm	0.5 µm
Linearity deviation within +/- 1,0 mm	2 µm
IP protection category	IP 64
Cable length	2.5 m
Operating temperature Min	10 °C
Operating temperature Max	40 °C
Storage temperature MIN	-10 °C
Storage temperature MAX	80 °C
Temperature coefficient	0.09 µm/°C
Compatibility	Mahr LVDT
