Magnetic dial indicator stands for secure accurate positioning of indicators and comparator stands to accept dovetail or 8mm or 3/8" stem for precise comparative gauging and top quality bench centres.
NOGA articulated holder has become the industry most wanted due to it's Unique central locking mechanism with Noga designed spring loaded bearing, powerful up to 1300 Newtons magnetic base with fine adjust for excellent stability and accuracy.
.
Dial Indicator Stands

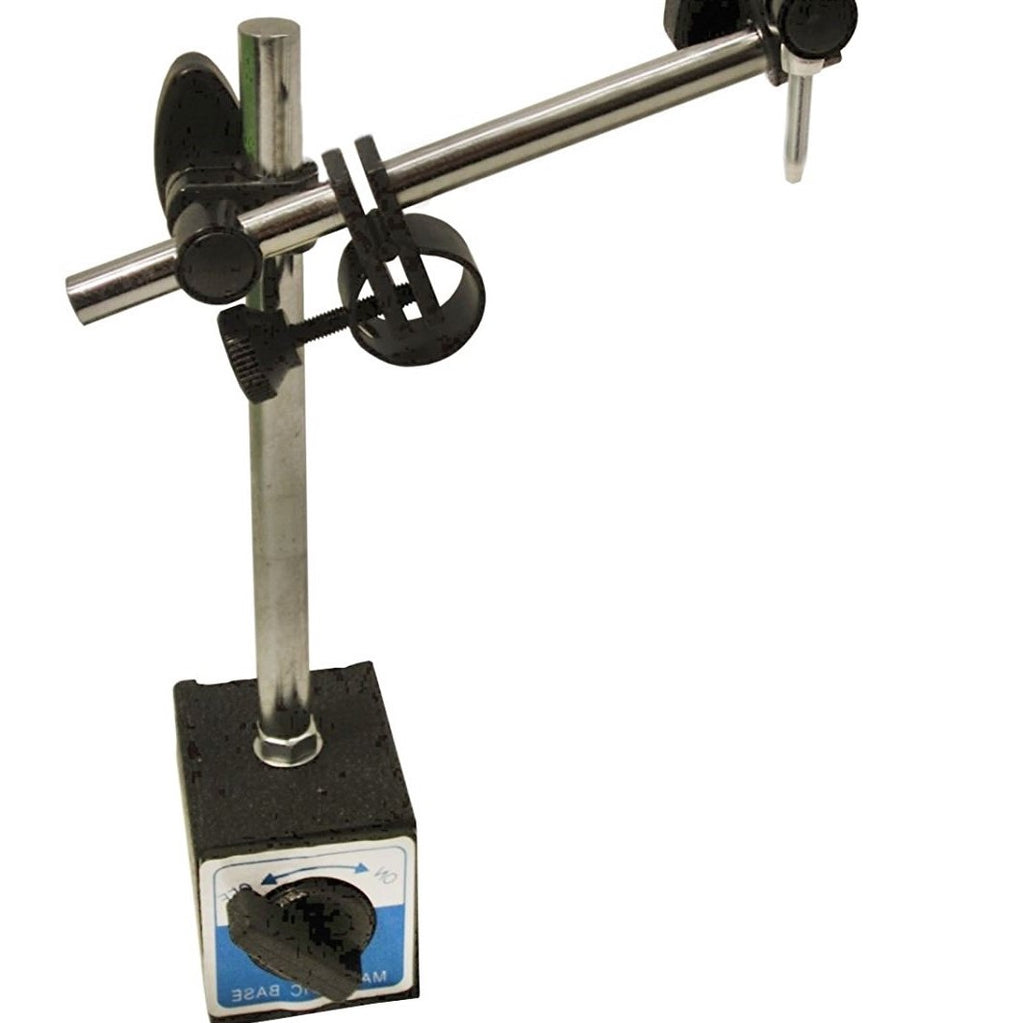

Dial Indicator Magnetic Stand Fine Adjust
£31.50
Fittings accept plunger indicators with stem or lug back spigot up to 3/8" lever indicators with spigot, overall height is 230mm.
Noga Holding: PH Indicator Holder with Fine Adjustment Base (FAB)
£65.60
NOGA PH holders with unique fine adjustment at base (FAB). Single direction fine adjustment at base Powerful on/off magnetic base Universal swivel clamp for all dial and test indicators Holds 6mm, 8mm, 3/8”, dovetail Strong arm lock by using multi points clamp Easy to set up gauges into required position Black oxide finish Please see images for...
Noga Holding Articulated Holder (FAT) | Fine Adjustment Top with Universal Clamp | 320N ; 800N or 1300N Force
Dial Indicator Stand
Noga Holding Articulated Holder (FAT) | Fine Adjustment Top with Universal Clamp | 320N ; 800N or 1300N Force
£136.40
Please select model from drop down box Due to it’s stability and ease of use, Noga’s articulated holders have become the industry’s most desired New fine adjustment on top with universal swivel clamp (FAT) Holds 6mm, 8mm, 3/8”, dovetail Powerful on/off magnetic base Central locking mechanism with spring loaded bearing Five axis holder Easy to ...
Noga Holding NF 1020 Holder 320N Force
£141.20
On/Off switchable magnet. 5 axis Holder 360° fine adjustments at base Holds indicator with 6 & 8mm stem and dovetail Central locking mechanism with NOGA designed spring loaded bearing Black oxide finish 320N force magnetic base Lower arm 56mm | Upper arm 51mm | Gauge holder length 14mm | Magnet Dimensions W 35mm L 40mm H 35mm
Noga Holding NF 1030 Holder 280N Force
£172.20
Permanent magnet 5 axis Holder 360° fine adjustments at base Holds indicator with 6 & 8mm stem and dovetail Central locking mechanism with NOGA designed spring loaded bearing Black oxide finish 280N force magnetic base Lower arm 56mm | Upper arm 51mm | Gauge holder length 14mm | Magnet Dimensions W 16mm L 60mm H 40mm
FISSO Strato Line Model: XS-13 F + S2 - 3D articulated gauging arm
£178.50
The FISSO (Swiss Made) Strato Line is the modern series with red anodized arm sections made of high-quality light alloy. Equipped with a zero-play microfine adjustment (F) with a combined holder for dial gauges and DTI's. Strato XS-13 - The smallest Strato model for use with DTI's on machine tools, in measurement systems with limited space. Pre...
FISSO Classic Line Model: 1100-13 F + S2 - 3D articulated gauging arm
£169.00
The FISSO (Swiss Made) Classic Line contains proven products with chrome-plated arm sections. Equipped with a zero-play microfine adjustment (F) with a combined holder for dial gauges and DTI's.Classic 1100-13 The smallest Classic model is suitable for use with dial test indicators on machine tools, and in measurement systems when only limited s...
Mahr MarStand 815 MG Indicator Stand : 390mm
£314.10
Measuring tripod with magnetic base MarStand 815 MG Total height 390 mm Projection (max.) 280 mm Mounting hole: 8H7 3D jointed arm, can reach any position within the operating range Easy positioning of all three joints with a securely fixed handle Maintenance-free mechanical clamping system Black anodized arm components made from high-quality...
FISSO Base Line Model: LS30 F + M - Gauging arm
£136.00
The FISSO (Swiss Made) Base Line models are simple, practical solutions with a high degree of stability. They feature strong clamping with robust aluminium clamping jaws. An additional joint for fine adjustment as well as precise microfine adjustment (F) with a combination holder for dial gauges and probes with dovetails. Base Line LS30 F + M T...
FISSO Classic Line Model: 2200-20 F + M - 3D articulated gauging arm
£210.00
The FISSO (Swiss Made) Classic Line contains proven products with chrome-plated arm sections. Equipped with a zero-play microfine adjustment (F) with a combined holder for dial gauges and DTI's.Classic 2200-20 The small Classic model for measurement probes and dial gauges can be used in any type of mechanical system. Pre-tensioning cannot be set...
Noga Holding: PH Indicator Holder Fine Adjustment with Universal Swivel Clamp
Dial Indicator Stand
Noga Holding: PH Indicator Holder Fine Adjustment with Universal Swivel Clamp
£91.60
NOGA PH (Post Holder) holders are the latest improvement of the traditionalindicator holder. New fine adjustment on the top with universal swivel clamp (FAT) Holds 6mm, 8mm, 3/8”, dovetail Powerful on/off magnetic base Strong arm lock by using multi point clamp Easy to set up gauges into required position Black oxide finish Please see images fo...
Noga Holding Articulated Holder (FAB) | Fine Adjustment at Base | 320N OR 800N Force
Dial Indicator Stand
Noga Holding Articulated Holder (FAB) | Fine Adjustment at Base | 320N OR 800N Force
£133.60
NOGA has developed a unique fine adjustment mechanism which isplaced on the magnetic base. This mechanism allows the hand to rest on the base rather than on the clamp of the indicator. Zero setting becomes faster than with any other mechanism Unique single direction fine adjustment at base (FAB) Holds 8mm or dovetail Powerful on/off magnetic ba...
Noga Holding Dual Articulated Holder (FAT & FAB) | Fine Adjustment at Top & Base | 800N Force
Dial Indicator Stand
Noga Holding Dual Articulated Holder (FAT & FAB) | Fine Adjustment at Top & Base | 800N Force
£198.60
Noga articulated holders with double fine adjustment New double fine adjustment:- BOTTOM unique single direction- TOP universal swivel clamp Holds 6mm, 8mm, 3/8” and dovetail Unique central locking mechanism with Noga designed spring loaded bearing Five axis holder Instantly fastens in any position Fast and easy to set up gauges into required p...
Noga Holding Standard Holder DG 1030 | 800N Force
£118.50
The Noga dial gauge holding system has two articulated arms, which can be easily locked into any postion by a single central locking knob. Fine adjustment. Holds indicator with 8mm stem & dovetail. Powerful on/off magnetic/vacuum base DG arms are manufactured from aluminium alloy with a black oxide finish. 80kg (800N) Pull Lower arm 110mm...
Noga Holding Standard Holder DG 1040 | 350N Force
£167.00
The Noga dial gauge holding system has two articulated arms, which can be easily locked into any position by a single central locking knob. Fine adjustment. Holds indicator with 6 & 8mm, 3/8” stem and dovetail. Powerful vacuum base DG arms are manufactured from aluminium alloy with a black oxide finish. Vacuum base adheres to any smooth fla...
FISSO Strato Line Model: S-20 F + M - 3D articulated gauging arm
£228.00
The FISSO (Swiss Made) Strato Line is the modern series with red anodized arm sections made of high-quality light alloy. Equipped with a zero-play microfine adjustment (F) with a combined holder for dial gauges and DTI's.Strato S-20 - The mid-range Strato model for measurement probes, dial gauges and DTI's. Can be used in any type of mechanical ...
FISSO Classic Line Model: 3300-28 F + M - 3D articulated gauging arm
£243.00
The FISSO (Swiss Made) Classic Line contains proven products with chrome-plated arm sections. Equipped with a zero-play microfine adjustment (F) with a combined holder for dial gauges and DTI's.Classic 3300-28 The standard Classic model for measurement probes and dial gauges can be used in any type of mechanical system. Pre-tensioning cannot be ...
FISSO Strato Line Model: M-28 F + M - 3D articulated gauging arm
£295.00
The FISSO (Swiss Made) Strato Line is the modern series with red anodized arm sections made of high-quality light alloy. Equipped with a zero-play microfine adjustment (F) with a combined holder for dial gauges and DTI's.Strato M-28 The large Strato model additionally features steplessly adjustable pre-tensioning to protect the instrument.FISSO ...
FISSO Strato Line Model: XS-13 F + TMS - With Pot Magnet
£164.00
The FISSO (Swiss Made) Strato Line is the modern series with red anodized arm sections made of high-quality light alloy. Equipped with a zero-play microfine adjustment (F) with a combined holder for dial gauges and DTI's. Strato XS-13 - The smallest Strato model for use with DTI's on machine tools, in measurement systems with limited space. Pre...
Comparator Stand Kafer P7
£167.00
The Precision Comparator Stand made in Germany is sturdily built and accurately finished. Its surface plate is hardened, ground and lapped. It is separated from the main body resting on three support points. The carrying arm is adjustable for height on the vertical column. The column is hardened and ground. * Does not include indicator Measuring...
Dial Indicator Magnetic Stand
£29.50
Standard on/off magnetic stand. indicator not included.
Moore and Wright Hydraulic Magnetic base 485 Series
£75.17
Features a unique hydraulic central lock for all arms and swivel positions Features: Super solid model With fine adjustment With powerful on/off magnetic base Magnetic force 80Kg / 175lbs Universal model which can be used for indicators with or without lug on back plate Accepts dial test indicators, digital indicators and normal indica...
Mahr MarStand 815 P Dial Gauge stand with magnetic base : 205mm
£170.10
Support arm fitted with joint Sturdy, round machine base with permanent magnet Stainless steel column and support arm Fine adjustment at support arm Display unit pivotable by ± 90° Fine adjustment range mm 1.5 mm Product weight 0.7 kg Total height 205 mm Projection (max.) 130 mm Mounting hole 8H7
Magnetic Dial Indicator Magnetic Bases | Solid Cross Arm OR Fine Adjustment Arm
Dial Indicator Stand
Magnetic Dial Indicator Magnetic Bases | Solid Cross Arm OR Fine Adjustment Arm
£40.60
MB-1 Magnetic Base with solid cross arm Plunger Indicators held by lug back or up to 8mm dia stem Lever Indicators held by spigot Overall height 230mm Upright arm is 12mm diameter with M8 x 1.25 thread Cross arm is 10mm dia Switchable magnetic has 400N force Weight 1500g | Width 65mm | Height 90mm | Length 282mm MB-2 Magnetic Base with fine a...
Light Duty Magnetic Dial Indicator Magnetic Base
£56.80
Light duty magnetic base Push button style Three precision ground contact surfaces Base dimensions: Length 48mm | Height 50mm | Width 40mm Clamping force 250 N Upright: Ø12.5mm bright polished steel Cross arm: Ø6.3mm bright polished steel Holds indicator stems up to 6mm & lug back Weight 1100g | Width 95mm | Height 60mm | Length 250mm
Medium Duty Magnetic Dial Indicator Magnetic Base
£51.40
Medium duty magnetic base Push button style Three precision ground contact surfaces Base dimensions: Length 48mm | Height 50mm | Width 40mm Clamping force 290 N Upright: Ø12mm chrome plated steel Cross arm: Ø10mm chrome plated steel Holds indicator stems up to 3/8" & lug back Weight 1100g | Width 95mm | Height 60mm | Length 250mm
Medium Duty Magnetic Dial Indicator Magnetic Base with Fine Adjustment
£66.60
Medium duty magnetic base Push button style Three precision ground contact surfaces Base dimensions: Length 48mm | Height 50mm | Width 40mm Clamping force 290 N Upright: Ø12mm chrome plated steel Cross arm: Ø10mm chrome plated steel Holds indicator stems up to 3/8" & lug back Weight 1100g | Width 95mm | Height 60mm | Length 260mm
Snake Arm Magnetic Base
£56.60
Can be locked in any position by means of one lever Flexible arm fitted with an MB-B mag base Magnet has 400N force Overall Length of Arm: 330mm Provides clamping for plunger and lever indicators with spigots and stems between 3mm and 13mm diameter Weight 1500g | Width 95mm | Height 65mm | Length 260mm
Magnetic Base and Dial Indicator Kit (Fine Adjustment Cross Arm)
£100.80
LINEAR kit, housing the MB-2 Magnetic Base with the DG-25M Dial Gauge in a plastic box case MB-2: magnetic base with fine adjustment arm specification: Overall height: 230mm Switchable magnet has 400N force Dial Gauge (DG-25M) specification Hardened & ground racks Bezel lock Lug back fitted Stem dia: 8mm Tolerance pointers Travel: 25mm Reso...
Universal Magnetic Base and Dial Indicator Kit (Solid Cross Arm & Fine Adjustment Cross Arm)
Dial Indicator Stand
Universal Magnetic Base and Dial Indicator Kit (Solid Cross Arm & Fine Adjustment Cross Arm)
£72.60
Magnetic Base complete with two arms:1 x Solid Cross Arm1 x Fine Adjustment Arm Magnetic Base with solid cross arm Plunger Indicators held by lug back or up to 8mm dia. stem Lever Indicators held by spigot Overall height 230mm Switchable magnet has 400N force Dial Gauge (DG-M) specification: Adjustable dial Bezel diameter: 60mm Hardened & g...
Three Piece Electronic Measuring Set | Electronic Dial Gauge | Digital Caliper | Magnetic Base
Dial Indicator Stand
Three Piece Electronic Measuring Set | Electronic Dial Gauge | Digital Caliper | Magnetic Base
£158.80
Set contains 3 of the most popular measuring and setting tools, electronic dial gauge, digital caliper & magnetic base, conveniently housed in a fitted storage case. 1 x Large Face Digital Caliper: 49-923-150 (0-150mm) 1 x Electronic Digital Indicator: EDI-25 Resolution for both instruments: 0.01mm/0.0005” 1 x Magnetic Base: MB-2 with fine ...
Magnetic Base & Digital Indicator Kit
£86.95
Magnetic Base with solid cross arm Holds Plunger and Lever Indicators Plunger Indicators held on Lug Back or 8mm Stem Lever Indicators held on spigots Overall Height: 230mm Main Upright Post: 12mm dia. with M8 x 1.25 thread Solid Cross Arm 10mm dia. x 150mm long Kit Contents:• 1 x Magnetic Base: MB-1• 1 x Plunger Digital Indicator• 25mm / 1” Tr...
Magnetic Base and Dial Indicator Kit (Solid Cross Arm)
£72.60
LINEAR kit, housing the MB-1 Magnetic Base & the DG-M Dial Gauge in a plastic box case MB-1: Magnetic Base with solid cross arm: Overall height: 230mm Plunger Indicators held by lug back or up to 8mm dia. stem Switchable magnet has 400N force Dial Gauge (DG-M) specification: Bezel diameter: 60mm Hardened & ground racks Bezel lock Lug b...
Mahr MarStand 815 MF Measuring tripod with magnetic base
£426.60
Please select size above: 3D jointed arm, can reach any position within the operating range Easy positioning of all three joints with a securely fixed handle Very sturdy component, for excellent stability and accuracy Maintenance-free mechanical clamping system Black anodized arm components made from high-quality light alloy Dial indicator hold...
Steel Base Dial Gauge Stand | Fine Adjustment
£138.00
Enamelled cast iron base with 1” diameter x 195mm high chrome plated column Ground working surface 5 1/2” deep x 4 1/4” wide Maximum height to centre of indicator 6 1/2” Accepts all lug back indicators Lug clamping screw 2 1/4” from centre of column Fine adjustment knob for zero setting Weight 4015g | Width 225mm | Height 94mm | Length 223mm
Comparator Dial Gauge Stand
£140.00
Deluxe Dial Gauge Stand Dial Gauge Stands holds indicators and probes for thickness and comparator work. Quick positioning and adjustmentZero settings with knob for fine adjustmentFine adjustment of 5/32"Can hold indicators with stems of 3/8" and split bush to 8mmRound working surface 4"Diameter of column is 1"
Comparator Granite Dial Gauge Stand
£115.00
Flatness: +/- 2.5μm Height: 290mm Base: 200 x 150 x 54mm Column Diameter: 25mm Weight: 7.8kg (Case Packed) Please note: indicators must be purchased separately
Mitutoyo 7001-10 Dial Gauge Stand Hardened Serrated Steel Anvil 58mm
£533.00
Stand Features: Effective table dimensions: Ø 58 mm Column Ø: 30 mm Max. measurement height: 95 mm Measuring table: Serrated Fine adjustment: 1 mm Table flatness: 0.003 mm Stem hole ø: 9.53 mm, 8 mm with bush (standard accessory) Perpendicularity table-stem hole: 0.4/100 mm MPN: 7001-10
Mitutoyo 215-405-10 Comparator Gauge Stand Hardened Steel Anvil 110x110mm Square Anvil
Dial Indicator Stand
Mitutoyo 215-405-10 Comparator Gauge Stand Hardened Steel Anvil 110x110mm Square Anvil
£683.00
Stand Features: Effective table dimensions: 110 x 110mm Column Ø: 40 mm Max. measurement height: 235 mm Fine adjustment: 1 mm Table flatness: 0.0023 mm Stem hole ø: 9.53 mm, 8 mm with bush (standard accessory) Perpendicularity table-stem hole: 0.4/100 mm MPN: 215-405-10
Mahr MarStand 820 N Small Steel Comparator Stand 0-110mm
£247.50
Small steel comparator stand MarStand 820 N Working range a: 0 - 110 mm Mounting hole: 8H7 Stable design Table plate made of hardened steel Rugged, ground stainless steel column Adjustable support arm for indicating instrument Flatness tolerance DIN 876 t1 = 2(1 + L/1000) µm, L in mm Working range a 0 - 110 Product weight 2.6 kg Mou...
Mahr MarStand 820 FG Small Granite Comparator Stand 0-130mm
£418.50
Small comparator stand, plate made of granite MarStand 820 NG Working range a: 0 - 130 mm Mounting hole: 8H7 Stable design Table plate made of black granite, lapped Rugged, ground stainless steel column Adjustable support arm for indicating instrument Flatness tolerance DIN 876 t1 = 4(1 + L/1000) µm, L in mm Working range a 0 - 130 Pr...
Granite Base Dial Gauge Stand | Fine Adjustment
£109.00
Black granite base 2” thick with 1” diameter x195mm high chrome plated column Working surface 6” x 6” Maximum height to centre of indicator 6” Accepts all lug back indicators Lug clamping screw 2 1/4” from centre of column Fine adjustment knob for zero setting Weight 4910g | Width 210mm | Height 60mm | Length 210mm
Mahr MarStand 818 Measuring Bench with Center Supports 0-200mm
£820.80
Radial run-out gage with center supports MarStand 818Distance between centers: 0 - 200 mmHeight of centers: 50 mmPackage contains: measuring bench, measuring arm 818 XNB, center supports, excludes indicator Measuring bench: Flatness of support surface as per DIN 876-2 With two T-grooves to hold center supports and post and support assembly Po...
Mahr MarStand 818 Measuring Bench with Center Supports 0-450mm
£2,637.00
Radial run-out gage with center supports MarStand 818 Distance between centers: 0 - 450 mm Height of centers: 100 mm Package contains: measuring bench, measuring arm 818 XNB, center supports, excludes indicator Measuring bench: Flatness of support surface as per DIN 876-2 With two T-grooves to hold center supports and post and support assembl...
Mahr MarStand 818 Measuring Bench with Center Supports 0-350mm
£1,026.00
Radial run-out gage with center supports MarStand 818 Distance between centers: 0 - 350 mm Height of centers: 75 mm Package contains: measuring bench, measuring arm 818 XNB, center supports, excludes indicator Measuring bench: Flatness of support surface as per DIN 876-2 With two T-grooves to hold center supports and post and support assembly...
Starrett 660 Magnetic Base Indicator Holder
£146.79
The Starrett 660 Magnetic Base Indicator Holder is compact and versatile, with three adjustable pivots controlled by a single knob for fast and easy indicator positioning. Small but powerful magnetic base with 320N (70lb) holding force Positive on/off switch Base dimensions: 30mm x 40mm x 35mm (1-3/16"" x 1-9/16"" x 1-3/8"") Horizontal a...
Noga Holding Magnetic Bases
£32.40
HS 1100: 20kg (200N) Pull | Thread size: M5 NF 0037: 32kg (320N) Pull | Thread size: M NF 3778: Fine Adjustment system fitted to top of base | 32kg (320N) Pull | Thread size: M5 DG 3678: Fine Adjustment system fitted to top of base | M8 x 1.25mm Internal thread MB-C: 80kg (800N) Pull | Thread size: M8 x 1.25 DG 0038: 100kg (1000N) Pull | Thread...
Noga FAT & FAB Dual Fine Adjustment System | 320N or 800N Force
£172.60
Please select model below: Noga articulated holders with double fine adjustment New double fine adjustment:- BOTTOM unique single direction- TOP universal swivel clamp Holds 6mm, 8mm, 3/8” and dovetail Unique central locking mechanism with Noga designed spring loaded bearing Five axis holder Instantly fastens in any position Fast and easy to...
