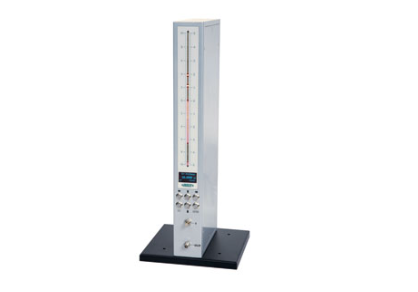

Air Gauging Column Display (Metric Only) | Insize 9416-1 | 9416-2

Previous Product | Next Product

Product Description

£1,198.00 (ex VAT)

Usually ships in: 7-10 days

This item qualifies for free UK delivery

Works with all makes of air gauge tooling with two setting masters.

LED bar display (Red / Orange / Green settings) and digital numeric display.

Metric only.

RS232 USB.

Power supply 185 - 265V.

Comes with regulator, filter, on/off valve, air input 60 - 150psi. air output 58 - 90psi

Positive click buttons for easy to enter feature size, control limits and tolerances.

Quick and easy to set / calibrate to low & high master with prompts.

Programs to store up to 10 sets of tooling, for easy selection.

If supplied with Mercer bayonet, handle easily detached to remote gauge.

Robust construction.

Accuracy and stability is excellent.

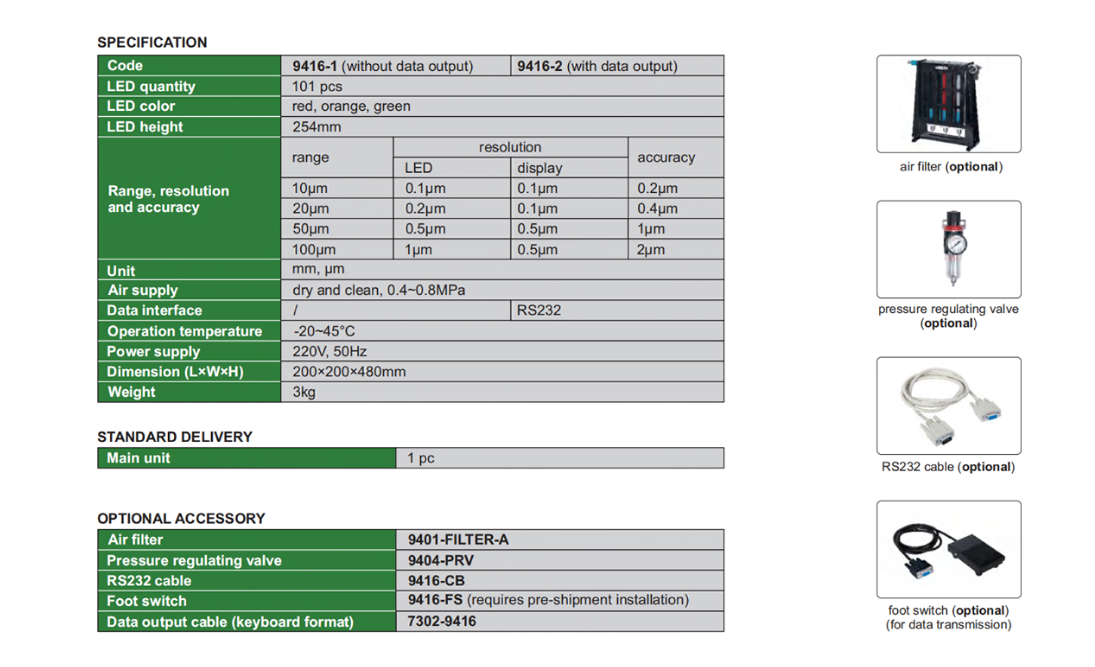

Range (µm)	Resolution (µm)	Accuracy (µm)
10	0.1	0.2
20	0.2	0.4
50	0.5	1
100	1	3

Optional extra's, RS232 cable / foot switch / Data output cable (keyboard format) / Wireless transmitter.
