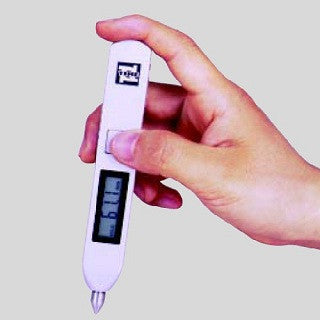

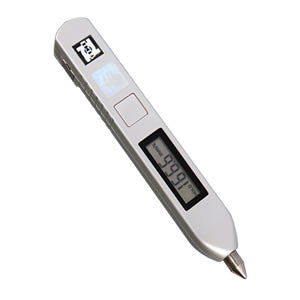

Vibration Meter Pen TV200 Time 7120

Product Description
£225.00 (ex VAT)

Usually ships in: 3 days

Prompt testing for vibration  on motors, fans, pumps, air compressors, machine tools etc, equipped with a acceleration integrated sensor makes it small light and portable an excellent instrument for preventive maintenance and malfunction of mechanical equipment.

Technical Specification:

Parameters: RMS of vibration velocity (mm/s)
Testing range: Velocity: 0.1mm/s ˜ 199.9mm/s
Frequency range: Velocity: 10Hz ˜ 1kHz
Tolerance: ± 5%
Display: 3½ digit LCD
Power supply: two button batteries (LR44 or SR44)
Battery Capacity: Approx. 4.5 hours working continuously
Operating Temperature: 0 ˜ 40°C
Humidity: < 85 %
Dimensions: 150mm x 22mm x 18mm
Weight: 55g (including batteries)
