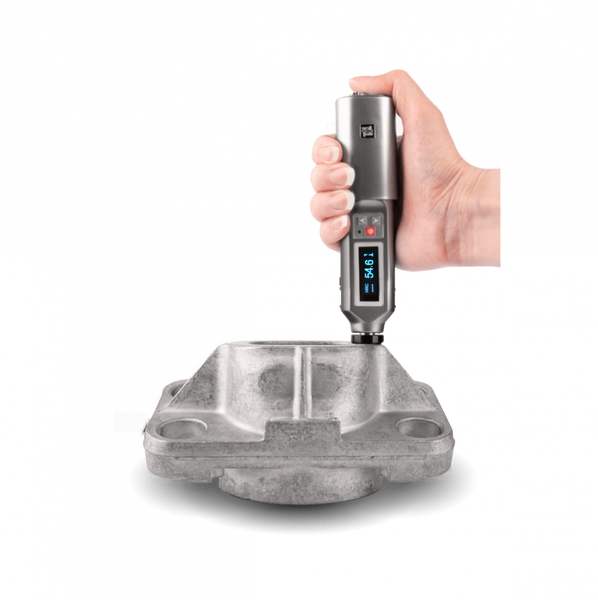

Portable Hardness Tester TIME 510D

Product Description
£1,680.00 (ex VAT)
Usually ships in: 2-3 days
Delivery price: £5.99

The TIME 510D provides in portable hardness inspection of almost any object, polished parts and heat-treated surfaces. The hardness measurements are made by using the dynamic rebound testing method according to Leeb. Leeb hardness testing was invented in 1975 in Switzerland and has become one of the most popular portable testing methods currently available. The TIME Leeb Hardness testers are supplied to the industry since 1991 and can be seen as the current global standard for Portable hardness testing

  • Hardness parameter: HRC, HRB, HRA, HV, HB, HL, HS
  • Accuracy: 0.5% ± 3HL
  • Max. Surface roughness of workpiece: ≤1.6µm(Ra)
  • Impact device integrated D integrated
  • Max. hardness value: 940HV (Vickers)
  • Workpiece minimum weight 2kg - 5kg on solid support
  • Workpiece min. thickness coupled 0.05 - 2kg
  • Workpiece min. case hardened depth 0.8mm
  • Continuous working time >8 hours
  • Power 3.7V
  • Operating temperature 0°C to 40°C
  • Overall dimensions 145mm × 35mm × 30mm
  • Weight 130gr
