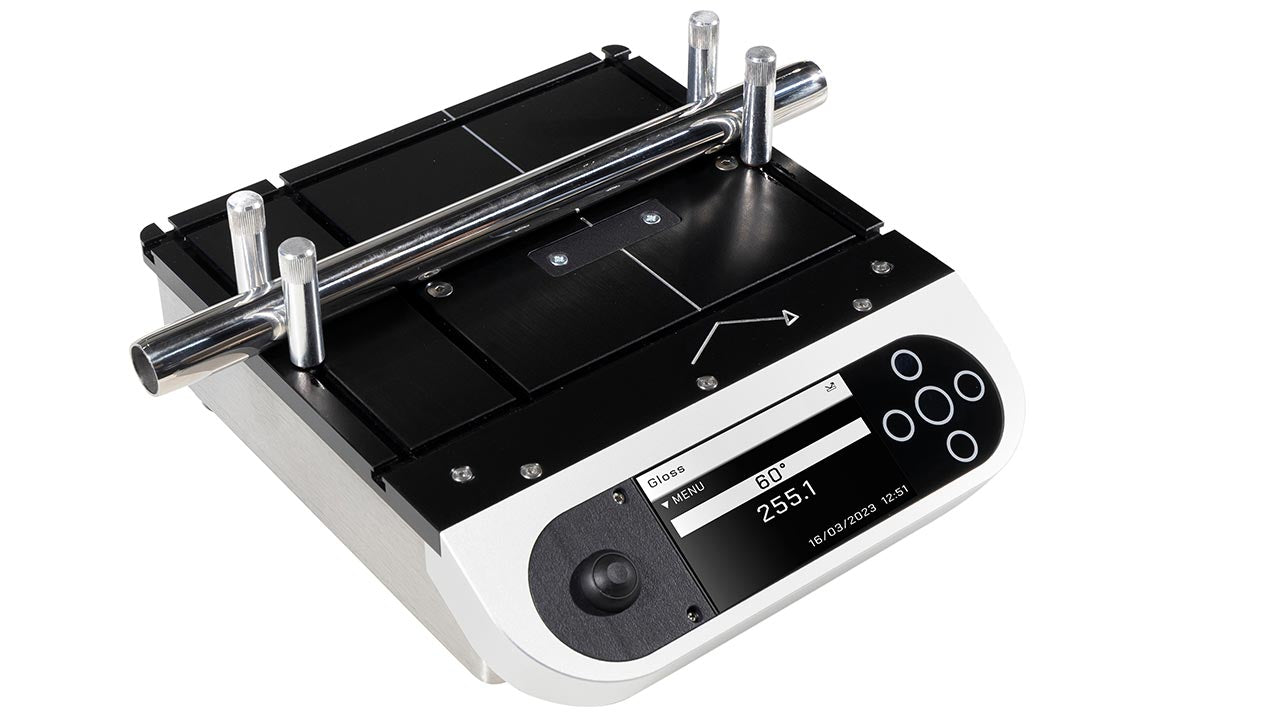

Novo-Curve Glossmeter

Product Description
£3,275.00 (ex VAT)
Usually ships in: 2-3 days
Delivery price: £8.99

The Novo-Curve Glossmeter is a unique instrument with specially designed optics for accurately measuring curved surfaces and small areas.

It can also be used to measure flat surfaces and areas which are too small to measure with standard glossmeters.

With built in statistical analysis and the ability to download results to a PC, the instrument has all the features you will ever need for fast accurate curved surface gloss measurement.

Benefits of using the Novo-Curve Glossmeter:

  • Measures small, curved or irregular surfaces
  • Measures using 60º geometry
  • Simple jigging system
  • Bench top instrument
  • Hands free operation, easy sample manipulation
  • Full statistical analysis
  • UKAS certification included


  • NIST traceable calibration tile and certificate
  • Footswitch
  • 220-240V/110-120V AC mains power pack
  • USB data cable + Novo-Soft software supplied on USB stick
  • Tile cleaning cloth
  • 4 x large sample jigging posts
  • Instruction manual
Standard Application Details
ISO 2813 Paints & Varnishes Determination of gloss value at 20°, 60° and 85°
B1277-032 Gloss Standard test method for specular gloss

Instrument Information
Measurement angle 60°
Range 0 – 1000GU
Repeatability 0.2GU (<200GU)
Reproducibility 0.5GU (<200GU)
Memory 199 readings
Power 110 –120V AC or 220 –240V AC
Measurement aperture 4.5mm ø
Measurement spot 2mm x 2mm
Commodity code 9027 5000

Dimension & Weights
Dimensions 160mm (H) x 220mm (W) x 100mm (D)
Weight 2.5kg
Packed Weight 6kg
Packed Dimensions 180mm (H) x 400mm (W) x 310mm (D)
Languages English, French, Spanish, German, Italian & Dutch
Commodity Code 9027 5000
