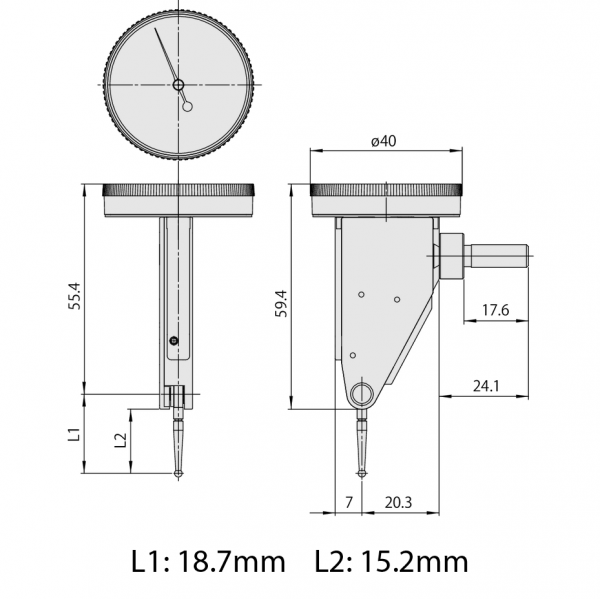

Mitutoyo 513-455-10T (0.002mm) Vertical Type Dial Test Indicator 4/8mm Stem with Bracket 0.2mm

Product Description
£174.00 (ex VAT)
Delivery price: £5.99

Indicator Features:

  • Range: 0-0.2mm
  • Resolution: 0.002mm
  • Accuracy: ± 0.003mm
  • MPE any half revolution: ±0.003mm
  • MPE any 10 scale divisions: ±0.002mm
  • MPE Measuring range: 0.003mm
  • Hysteresis: 0.002mm
  • Repeatability: 0.001mm
  • Scale: 0-100-0
  • Measuring Force: 0.3N or less
  • 8mm stem
  • Contact point thread: 1.7 x 0.35mm
  • MPN: 513-455-10T

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

  • Drastically enhanced durability, sensitivity and visibility.
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • The stylus length is on the dial face to reorder a replacement
  • Multi-layer coatings on the crystal

Full Set includes:

  • 8mm & 4mm Stem
  • Swivel clamp for 4mm & 8mm dovetail stem
  • Stylus 1mm diameter carbide point
  • Stylus 3mm diameter carbide point
  • 100mm Holding Bar
