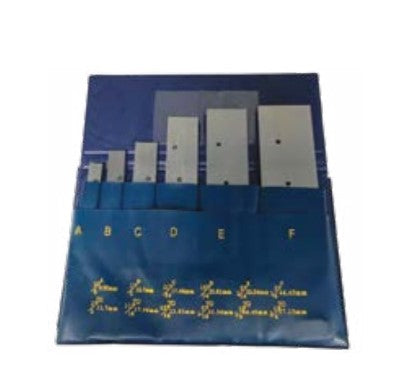

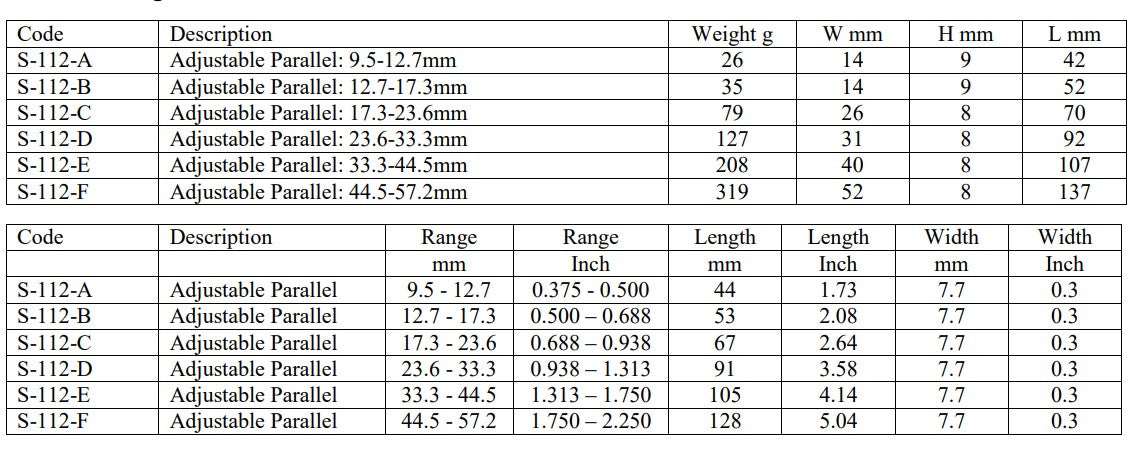

Linear Tools Adjustable Parallels | 6 pieces | Ranges from 9.5mm - 57.2mm

Product Description
$126.00 (ex VAT)
Usually ships in: 2-3 days
Delivery price: £12.00
  • Each parallel consists of 2 pieces dovetailed together so they can slide on each other to change the height and then locked by means of hex set screws (3/32” A/F}
  • Can be set to a micrometer for size
  • Can be expanded into slots and resulting size measured with a micrometer
  • Material: Thoroughly seasoned, Close-grain Cast Iron
  • Hardness: Greater than 87 HRB
  • Surface Finish:
  • Working Faces: 16 microinches
  • Side Faces: 32 microinches
  • Manufactured to US MIL/Federal Spec: GGG-P-61A/15 Jan 1966
