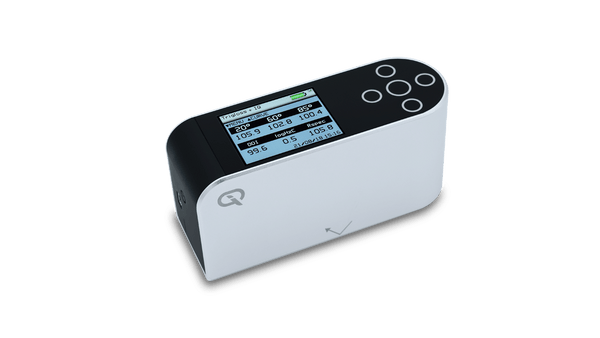

IQ 20/60 Gloss Haze DOI Meter

Product Description
£3,150.00 (ex VAT)
Usually ships in: 2-3 days
Delivery price: £8.99

The IQ Gloss, Haze & DOI Meter quantifies surface quality problems that are invisible to a standard glossmeter and profiles how light is reflected from a surface.

The IQ can measure

  • 20/60°Gloss
  • Reflectance haze
  • Reflected image quality (RIQ)
  • Distinctness of Image (DOI)
  • Goniophotometric curves

Glossmeters are usually used to measure the “shininess” of a surface but are not sensitive to common effects which reduce appearance quality.

IQ GLOSS measurements are fully compatible with existing Novo-Gloss and Micro-TRI-gloss results.

Dualgloss 20/60° or Trigloss 20/60/85° versions are for maximum accuracy and resolution in all gloss applications.

  • 20/60 gloss meter for matt to mirror finishes
  • Haze and DOI measurement to ASTM E430
  • Full statistical analysis with trend graphs
Range 0 - 500 Log HU
Repeatability 1 Log HU
Reproducibility 10 Log HU
Resolution 0.1 Log HU
Measurement Area 6mm x 6.4mm
Standards ASTM E430  |  ASTM D4039 | ISO 13808
Range 0 - 2000 GU 0 - 100 GU 0 - 100 GU
Repeatability 0.2% 0.2 Log HU 0.2 Log HU
Reproducibility 0.5% 0.5 Log HU 0.5 Log HU
Resolution 0.1
Measurement Area 6mm x 6.4mm
Standards Rhopoint ASTM E430 Rhopoint

Instrument Information
Battery Type Rechargeable lithium ion
Operation Time 17+ hours
Readings per Charge 20,000+
Memory 8MB, 2,000 readings
Operating Temperature 15°C - 40°C (60°F - 104°F)
Operating Humidty Up to 85% (non condensing)
Commodity Code 9027 5000
Dimension & Weights
Dimensions 140mm (H) x 50mm (W) x 65mm (D)
Instrument Weight 390g
Packed Weight 1.75kg
Packed Dimensions 360mm (H) x 290mm (W) x 140mm (D)
Included Accessories
Certificates: Instrument calibration certificate
Tile calibration certificate
Cables: USB data & mains cable
Wrsit strap
USB Containing: Instruction manual
Bluetooth data app
Example Excel spreadsheets
Novo-Gloss Multi Gauge software
Instructional videos
Calibration Tile High gloss calibration tile with cleaning cloth
Sample Positioning Templates
Quick Start Guide
