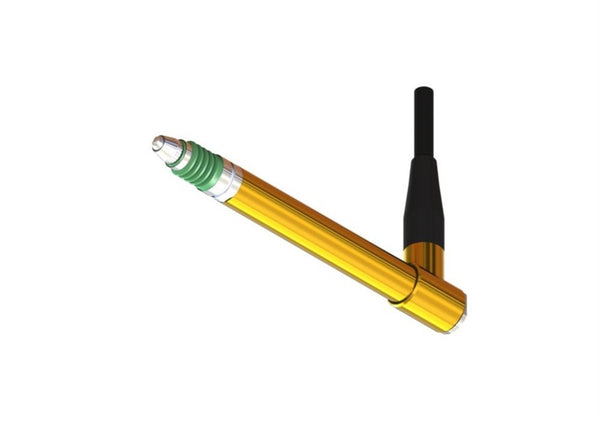

Gauging Transducer Probe Tesa GT22 Type radial

Product Description
£215.00 (ex VAT)
Usually ships in: 2-3 days
Delivery price: £5.99

Body Dia 8mm

Total length 104.8mm

Total stroke 4.6mm

Measuring stroke +/- 1.0mm

Adjustable pre travel

3mm carbide ball tip M2.5 thread

Cable PUR shielded, 2m long axial exit

Spring rate 0.63N

Repeatability 0.0001mm

Half bridge coil form
