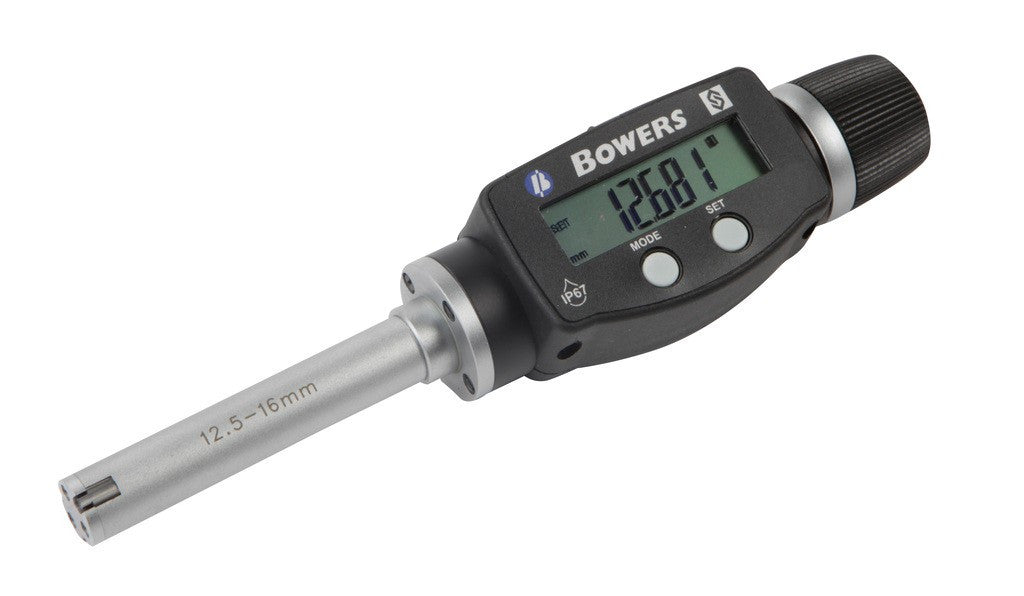

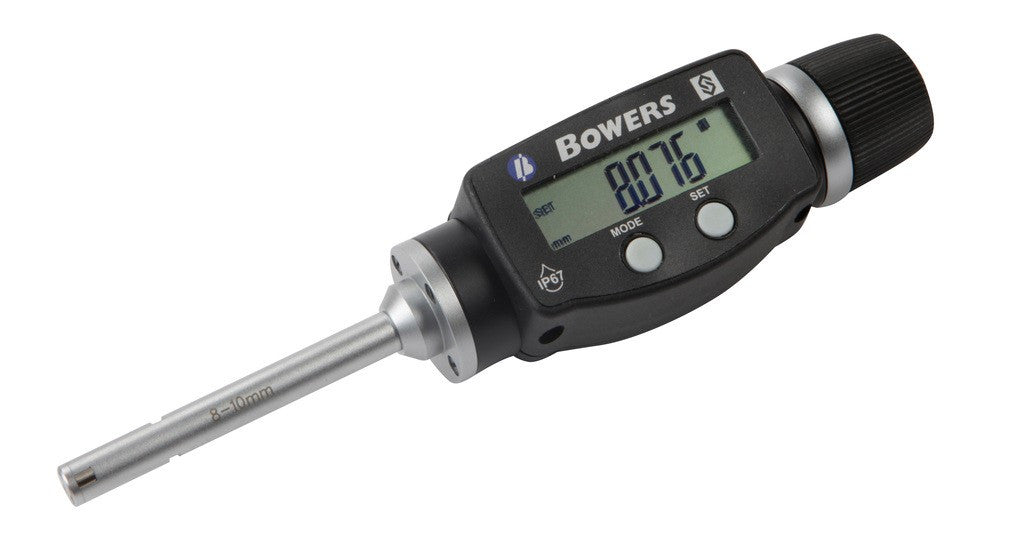

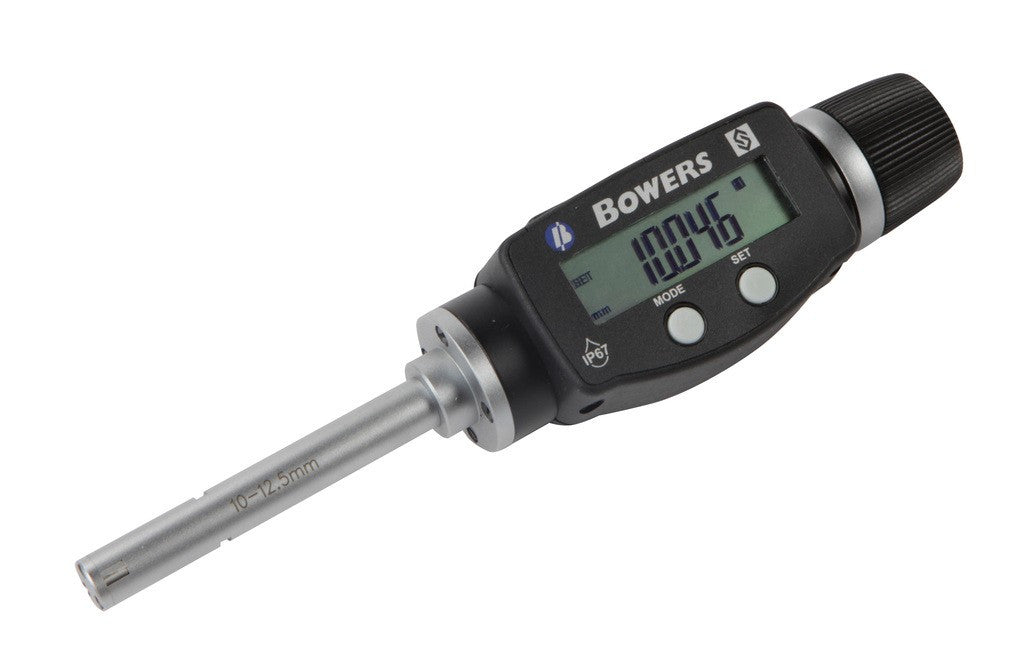

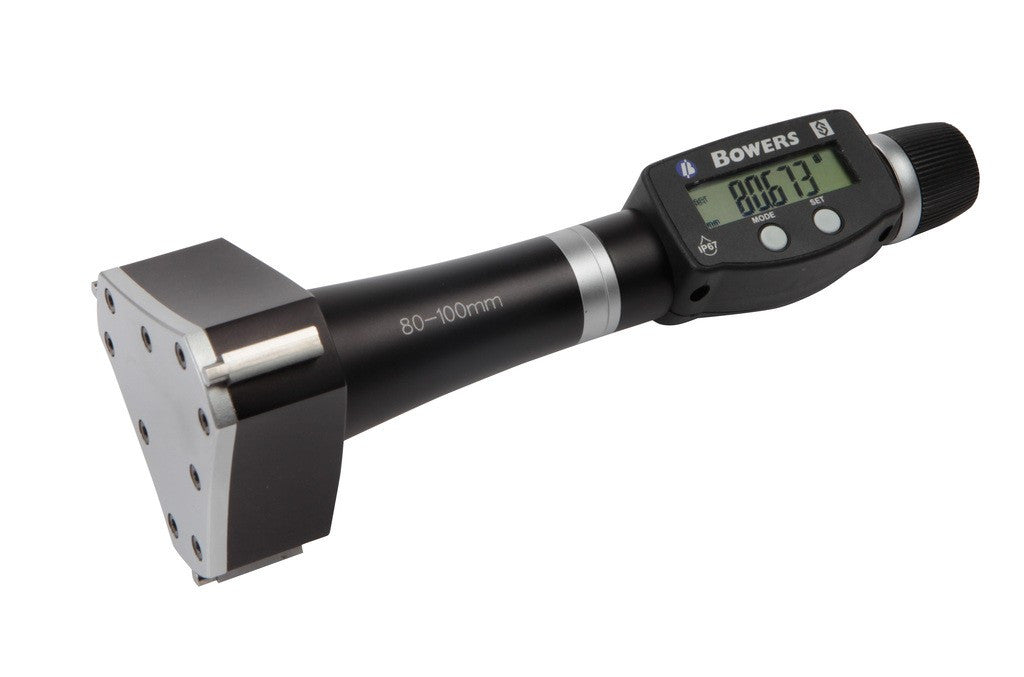

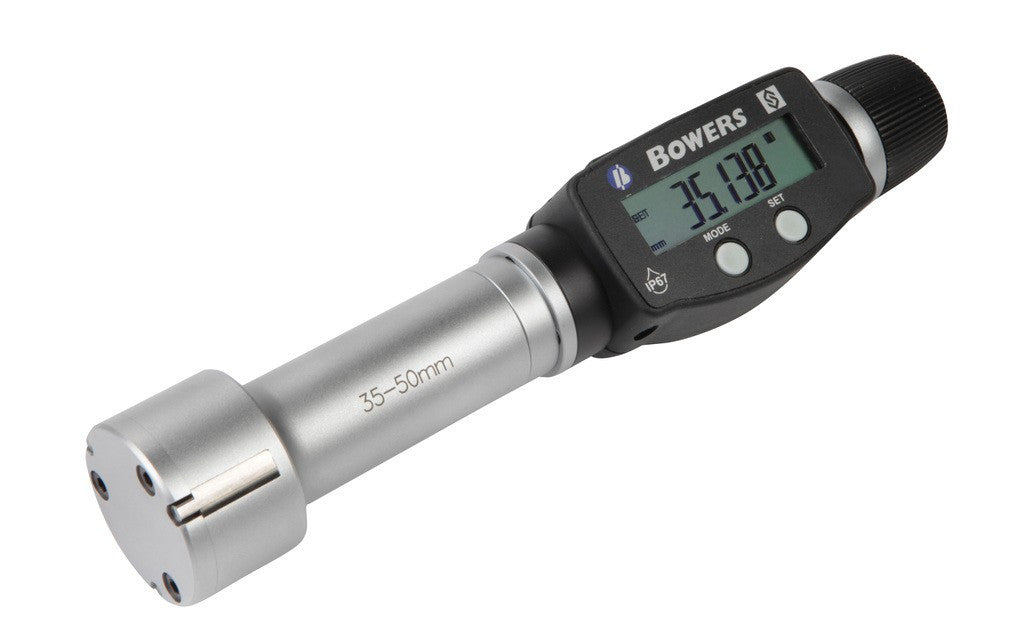

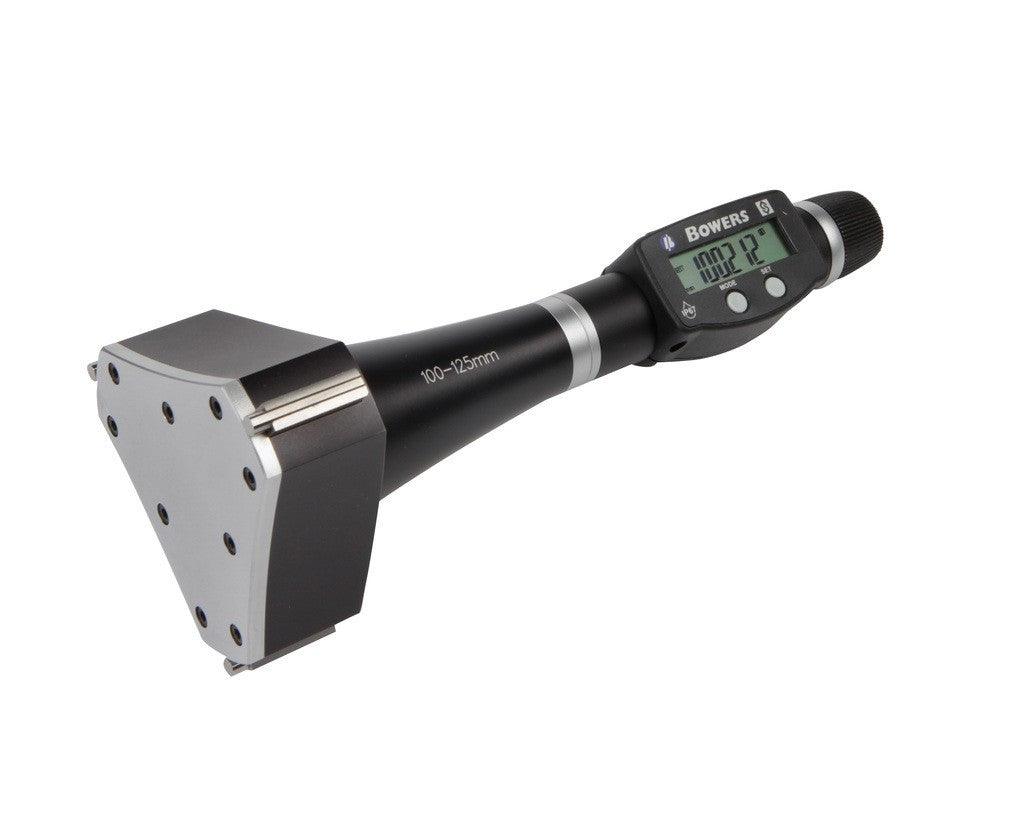

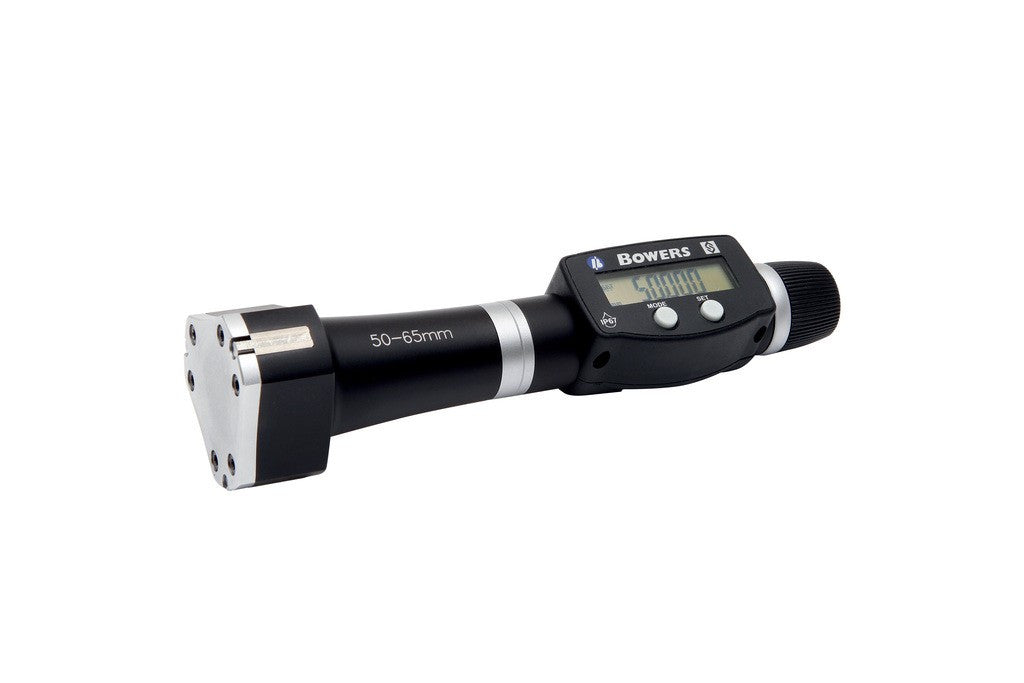

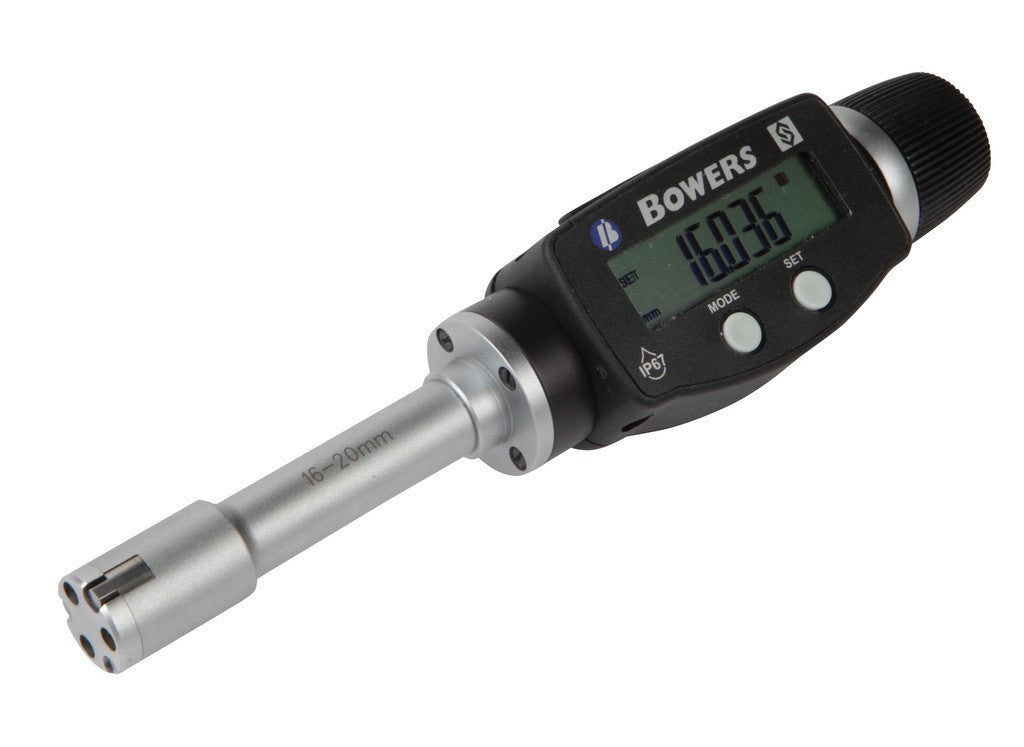

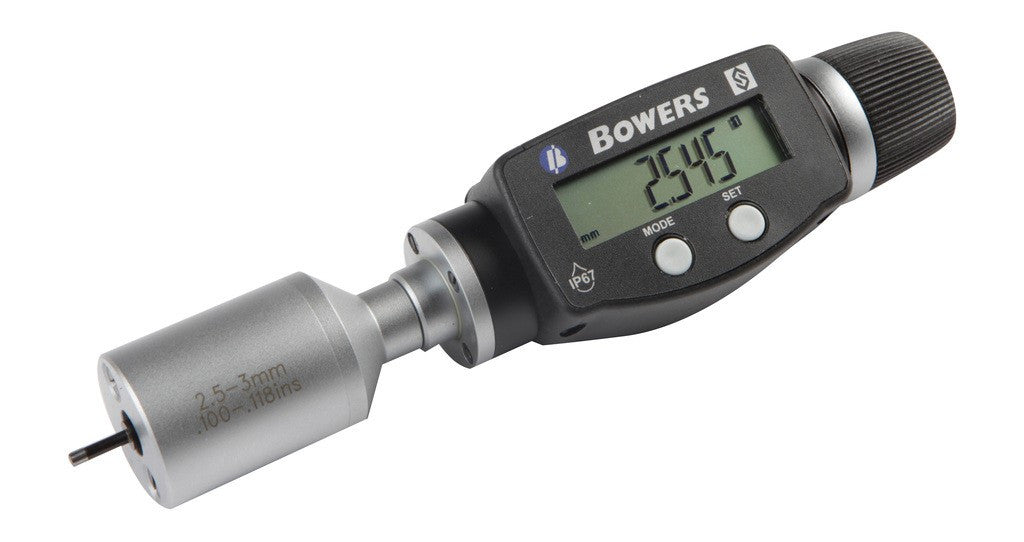

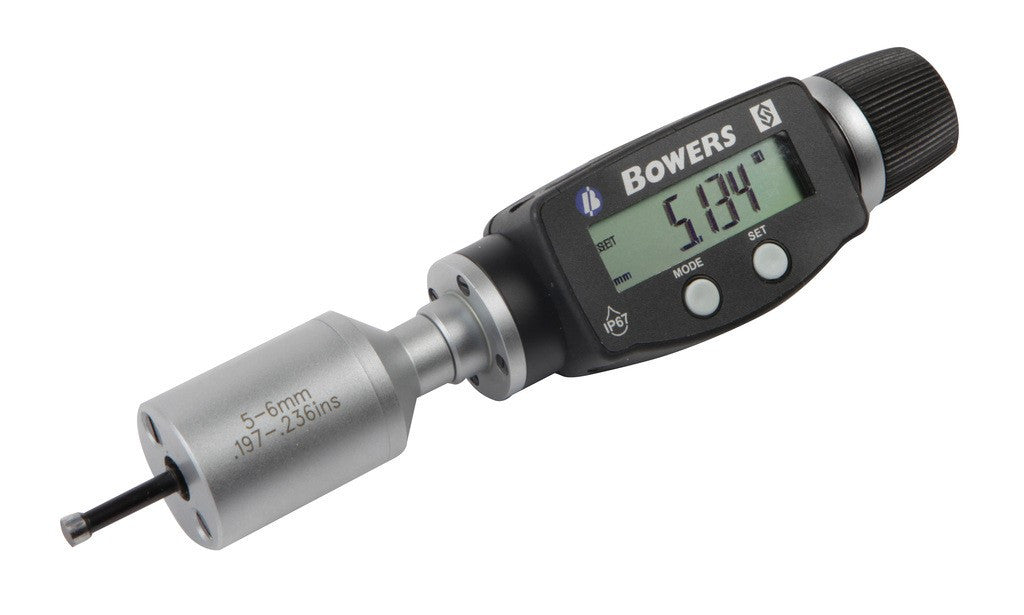

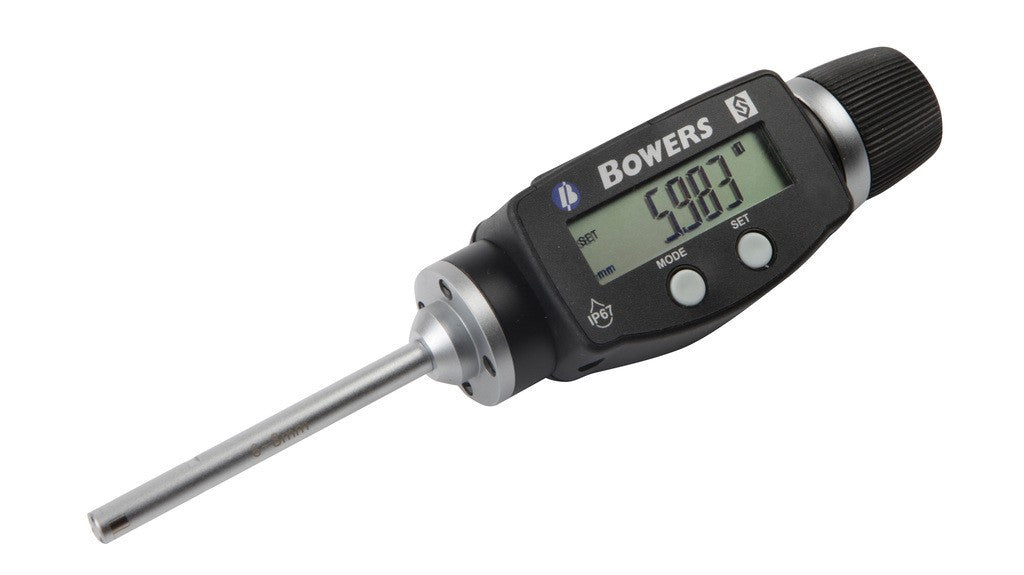

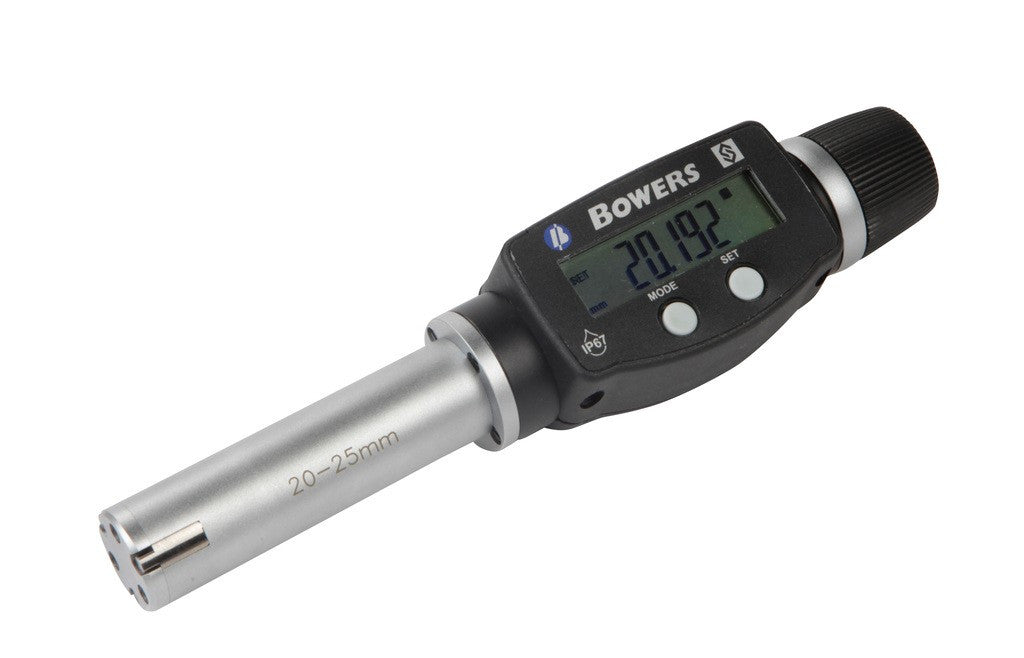

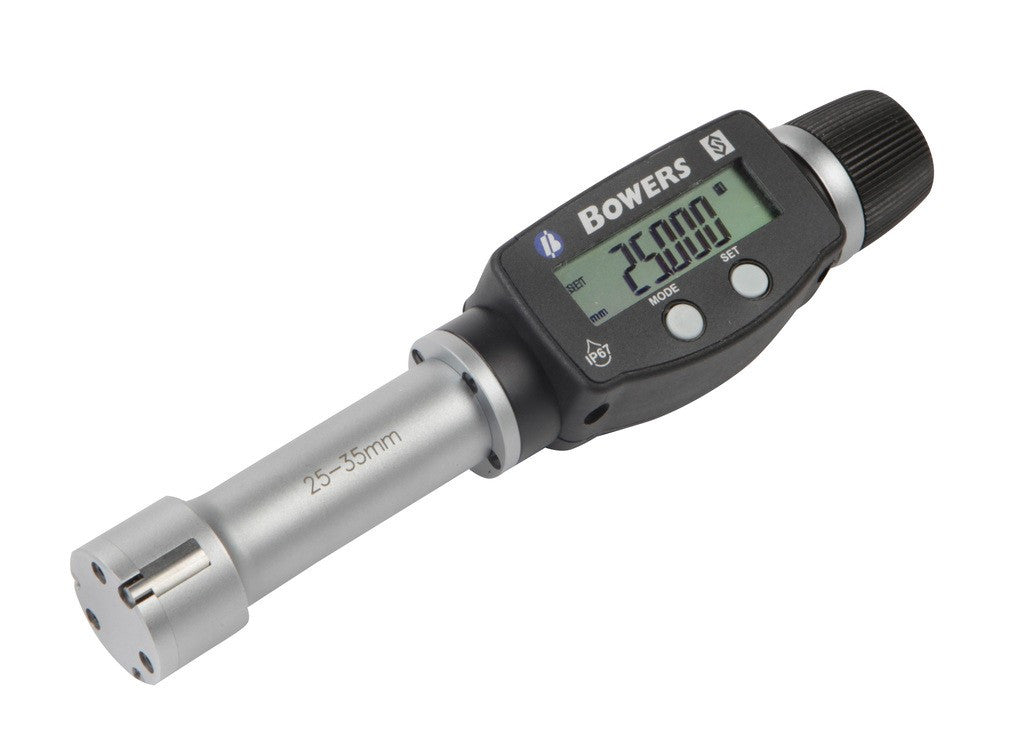

Bowers Digital Bore Micrometers

Product Description
£800.00 (ex VAT)
New ergonomic design with larger and clearer LCD display
• IP67 electronics
• Simple 2-button operation
• 4 preset memories
• Proximity RS232/USB output with optional built-in Bluetooth Low Energy (BLE)
• Bi-directional communication
• Range 2-300mm (0.080”-12”)
• 2-6mm 2 point/ 6-300mm 3 point measurement
• Resolution 0.001mm/0.00005”
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied as standard with all gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case
