Metro M1/M3 Air Gauge

Product Description
£1,144.50 (ex VAT)
Usually ships in: 10-14 days
This item qualifies for free UK delivery

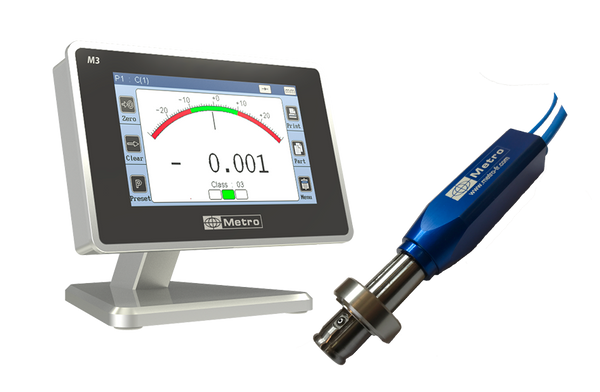

The Metro M1/M3 is the last generation of tool for dimensional control with an air gauge : air ring, air plug gauge, air fork etc. The M3 (13040) is compatible with all the air gauge brands available making it possible to use your existing air gauge with a modern and versatile display.

  • Tolerance limits, Control limits (warnings)
  • Calibration / Preset
  • Different display modes
  • Direct or dynamic measurement (Max, Min, Max-Min, Average, Median)
  • Sorting by classes of size, up to 16 classes by characteristic with coloured indicator
  • Possibility to lock selected functions with a password

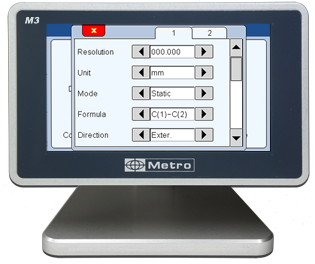

  • Display resolution (from 2 to 5 decimals)
  • M-Bus connector for the optional connection MBUS modules ( I/O modules or inductive probe etc.
  • Metric (µm or mm) or imperial measurements (inches)
  • Different languages installed (including Japanese, Chinese, Korean). New language can be installed upon request
  • Data export on a USB stick (.csv file)

M1 and M3 displays are designed to make various dimensional controls from 1 or 2 measuring input, including:
- Half bridge or LVDT Inductive probes from Metro (Example M804S), Tesa (Example GT21), Mahr
(Example P2004M), etc...
- Air gages. Compatible with all brands.
- Incremental probes from Heidenhain (Example MT12), Magnescale (Example DK812) or Mitutoyo (LG
- Linear scales and encoders TTL, 1 Vpp or 11μA
- Capacitive probes from Sylvac (Example P25) - available from the Sylvac sales network
Depending on the application, it is possible to connect additionally:
- Up to 4 modules with 8 inputs/outputs isolated by optocouplers (ref MB-IO)
- 1 module with relay outputs for new installations or retrofi t of old Metro Monocote displays fi tted with the
relay board. (ref MB-RL)
- Each input of the display can be replaced by a channel from an external module or from a Solartron Orbit
probe. Example to combine air gage and contact probe.
The M1&M3 can be used on very simple manual applications up to the most complex ones in fully automated machines.
These display units are extremely easy to use and to program with a user-friendly interface and intuitive
measuring principle.
The robust construction make these displays usable on the most severe industrial environment.
