Bareiss has built the evergreen of hardness testers in a nearly unchanged design since 1954. The HP is still as modern and precise as it was 50 years ago. Having sold more than 100 000 units all around the world, it is the most frequently used manual harndess tester. The entire chassis of HP is made of aluminum which provides light weight and durability. Every unit of HP is carefully assembled and calibrated by Bareiss technicians. To avoid indenter traveling with friction, we adopt the technique by combining different sizes of balls in the bearing to help smooth the indenter traveling. Bareiss HP Series is available in different Shore and non-Shore scales and with the possibility of customized presser foot to suit different requirements.

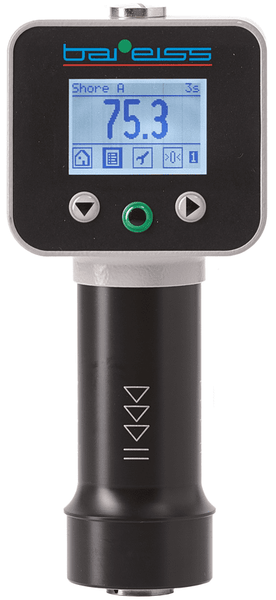

Latest Digital hand-held durometer hardness tester.
BASIC Model WITHOUT Temperature measurement on Sample, or Measurement of ambient temperature and humidity.
- Memory for 300 measurements.
- Graduation between 0-100 Shore.
- Constant Pressure Force & Measuring Time acc. to Standards.
- With USB/RS232 Interface.
- In Storage Case.
- With Control Ring SHORE 40.
- With BAREISS Manufacturers Test Certificate.
- According to DIN ISO 48-4 (DIN ISO 7619), ASTM D 2240
SHORE A hardness range - For testing hardness of soft & natural rubber, elastomers etc.
