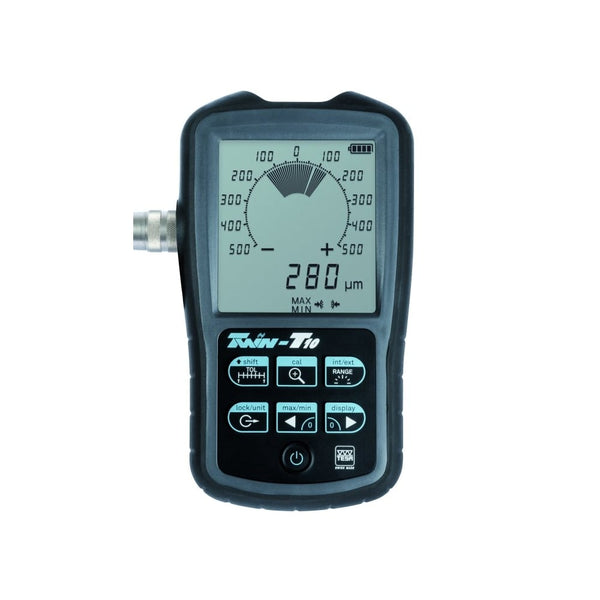

Tesa TRONIC TWIN-T10 portable display unit for inductive probes

Product Description
£949.00 (ex VAT)
Usually ships in: 2-3 days
Delivery price: £5.99
Portable display TESATRONIC TWIN-T10 for TESA inductive probe

– Autonomous instrument used during assembly, on an inspection workstation of a production line, for final inspection or directly on a machine on the shop floor
– Frequently used with a GT 31 lever probe for geometry measurements: form tolerances (straightness, flatness etc.) or orientation tolerances (parallelism, perpendicularity, etc.)

– Function TOL for measurements with tolerances
– Memory function for values MAX, MIN or MAX-MIN for dynamic measurements
– Function for zero-setting of the display, for easy comparative measurements with a reference part
– Special ZOOM mode for a more detailed visualisation of the analogue scale. This mode simplifies the alignment and fine adjustment during assembly.

Other features:
– 4 or 7 measuring ranges from ± 5 µm to ± 5 mm, or switchable automatically depending on the measured value
– Access to functions by direct keys
– Millimetre/inch conversion
– 1 probe signal input
– Power supply by standard AA batteries
– RS232 digital output (TLC connector)
