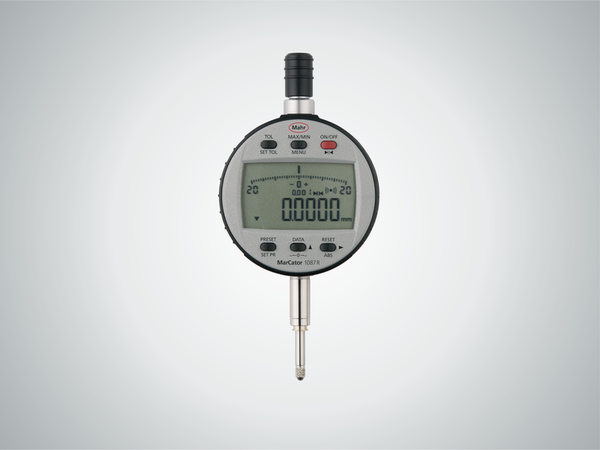

Mahr MarCator 1087 Ri Digital Indicator: Range 12.5mm/0.5"; Selectable Resolution

Previous Product | Next Product

Product Description

£526.50 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00

Integrated wireless transmitter
High-contrast LCD display
Operating and display unit can be rotated 280&deg
Lift-off cap on end of measuring pin
Mounting shaft and measuring pin in hardened stainless steel
Ready to measure immediately thanks to reference system

Measuring span in mm	12.5 mm
Product type	1087 Ri
Measuring span (inches)	.5"
Resolution	0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm
Graduation value mm	0,0005 , 0,001 , 0,002 , 0,005 , 0,01
Standard	Factory standard
Graduation value inches	.000002'' , .00005" , .0001'' , .0002'' , .0005"
IP protection category	IP 42
Battery type	CR 2450N (3V Lithium)
Range of analog display mm	± 0,01 , ± 0,02 , ± 0,04 , ± 0,1 , ± 0,2
Range of analog display inches	± .0004" , ± .001'' , ± .002" , ± .004" , ± .01''
Error limit (mm)	0.004 mm
Repeatability mm	0.001 mm
Measuring force (N)	0.65 - 0.85
Height of digits	8.5 mm
