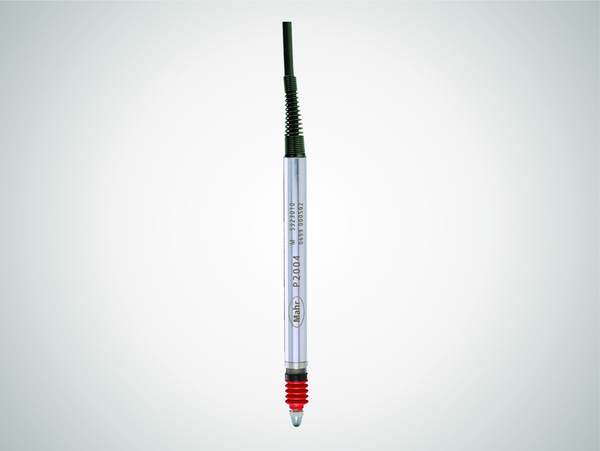

Mahr Millimar P2004 T Inductive Probe : ± 2 mm (Tesa Compatible)

Product Description
£296.10 (ex VAT)
Usually ships in: 10-14 days
Delivery price: £5.99 Delivery price: £17.00
  • Inductive probe Millimar P2004 T
  • Compatibility: Tesa
  • Measuring range mm: ± 2 mm
  • Standard model
  • Measuring force (N): 0,75 N +/- 0,15 N
  • Package contains: instruction manual, cap for radial cable output, spanner for preliminary stroke setting
  • Models with or without pneumatic lifter or load
  • Measuring pin mounted in rotary stroke bearing
  • High linearity over the entire measuring range
  • Excellent electromagnetic shielding (EMC)
  • All probes can be easily converted from axial to radial by mounting a slip on cap, included in the scope of supply
  • Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone
Measuring range from -2 mm
Measuring range up to 2 mm
Product type P2004 T
Distance of lower stop MIN -2.2 mm
Distance of lower stop MAX 0 mm
Distance of upper stop MIN 2.2 mm
Distance of upper stop MAX 4.4 mm
Lifter / retraction Standard model
Measuring force (N) 0,75 N +/- 0,15 N
Increase in measuring force 0,2 N/mm
Sensitivity deviation 0.3 %
Repeatability fw (µm) 0.1 µm
Measuring value hysteresis fu (µm) 0.5 µm
Linearity deviation within +/- 0,5 mm 0.4 µm
Linearity deviation within +/- 1,0 mm 1.5 µm
Linearity deviation within +/- 2,0 mm 3 µm
IP protection category IP 64
Cable length 2.5 m
Working temperature 20 °C
Working temperature MIN 10 °C
Working temperature MAX 40 °C
Operating temperature Min 10 °C
Operating temperature Max 40 °C
Storage temperature MIN -10 °C
Storage temperature MAX 80 °C
Temperature coefficient 0.15 µm/°C
Compatibility Tesa
Dimensions a 88.7 mm | b 28 mm | c 21.3 mm | d 6 mm | e 9.2 mm | f 8 mm | h 14 mm |
