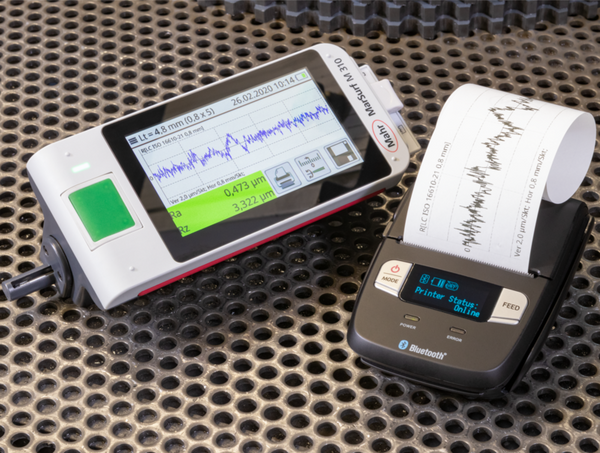

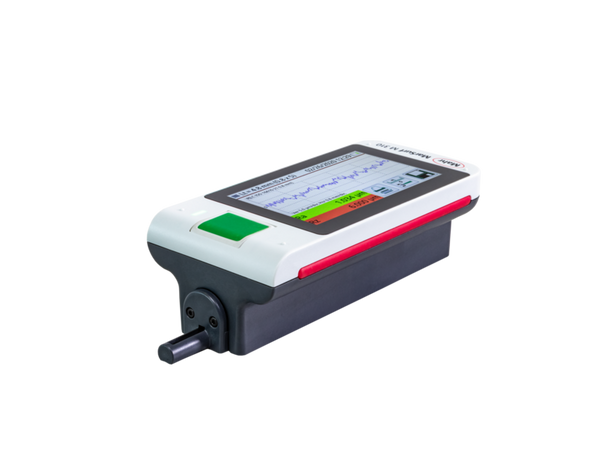

| IP protection category |
IP 40 |
| Positioning speed |
0.5; 1.0 |
| Measuring principle |
Stylus method |

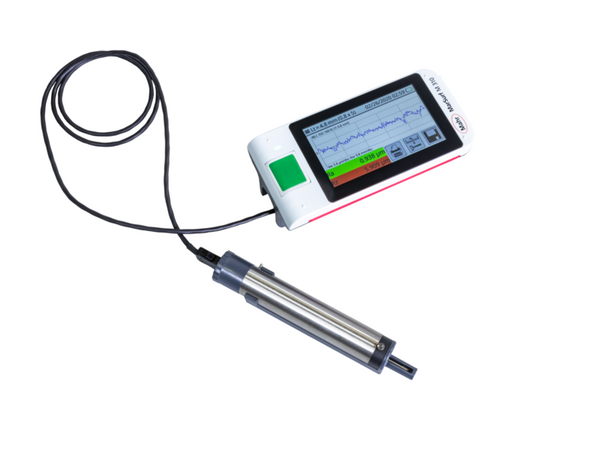

| Probe |
Inductive skidded probe |
| Parameters |
A1 , A2 , Ar , CF , CL , CR , Mr1 , Mr2 , R , R3z , RPc , RS , RSk , RSm , Ra , Rk , Rmax , Rmr (tp (JIS, ASME) is equivalent to Rmr) , Rp , RpA (ASME) , Rpk , Rpm , Rpm (ASME) , Rq , Rt , Rvk , Rx , Rz , Rz (JIS) , Rz (Ry (JIS) is equivalent to Rz) , Vo |
| Measuring units |
metric/inches |
| Measuring range mm |
0.350 |
| Profile resolution |
8 nm |
| Filter according to ISO/JIS |
Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off) |
| Cutoff Ic according to ISO/JIS |
0,25 mm , 0,8 mm , 2,5 mm , automatic filter detection , variable |
| Short stroke under ISO/JIS |
Selectable |
| Traversing length Lt according ISO/JIS |
1.5 mm , 4.8 mm , 15 mm , N x Lc , variable , automatic |
| Traversing length according ISO 12085 (MOTIF) |
1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm |
| Evaluation lenth In according to ISO/JIS |
1.25 mm, 4.0 mm, 12.5 mm |
| Number n of sampling length according to ISO/JIS |
Selectable: 1 to 16 |
| Stylus |
5 µm |
| Measuring force (N) |
.00075 |
| Calibration function |
Dynamic; Ra, Rz, Rsm |
| Storage capacity |
Min. 3900 profiles, min. 500,000 results, min. 1500 PDF measuring records, expandable to 32 GB with microSD card (320x memory capacity) |
| Languages |
German , English , French , Italian , Spanish , Portugese , Dutch , Swedish , Russian , Polish , Czech , Japanese , Chinese , Korean , Hungarian , Turkish , Romanian |
| Other |
Lock/password protected, date/time |

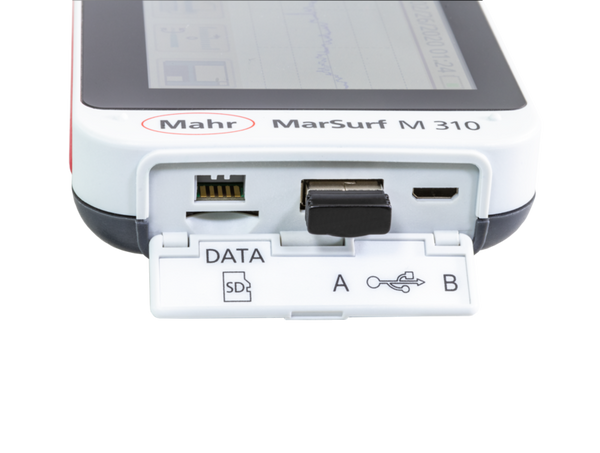

| Data interface |
USB A , USB B , MarConnect (bidirectional) , Micro SD slot for SD / SDHC cards up to 32 GB |
| System of protection |
IP 40 |
| Rechargeable batteries |
Lithium-ion battery, 3.7 V, nominal capacity 11.6 Wh, min. 1200 measurements |
| Wide range power supply |
100 to 264 V |
| Dimensions in mm |
160 mm x 77 mm x 50 mm |
