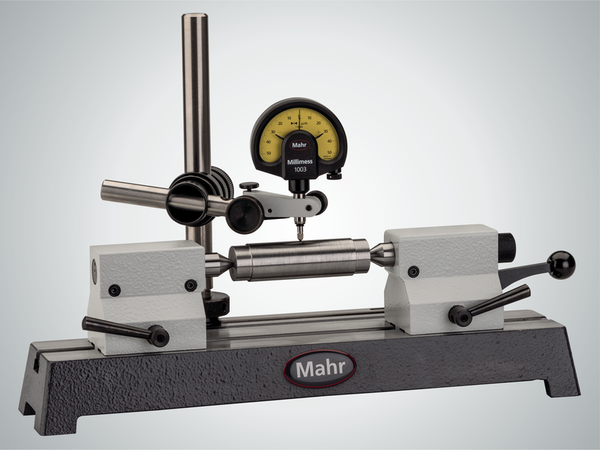

Mahr MarStand 818 Measuring Bench with Center Supports 0-200mm

Radial run-out gage with center supports MarStand 818
Distance between centers: 0 - 200 mm
Height of centers: 50 mm
Package contains: measuring bench, measuring arm 818 XNB, center supports, excludes indicator

Measuring bench:

• Flatness of support surface as per DIN 876-2
• With two T-grooves to hold center supports and post and support assembly


Post and support assembly 818 XNB:

• Support arm fitted with joint
• Holder with display device with 8 mm shaft diameter and fine adjustment


Center supports:

• Both center supports are adjustable
• Right center support includes retractable clamping tip
• Left center support has fixed counter-tip
• Center supports with peak height of 75 mm and 90° V-blocks for workpieces without center bore (for outer diameter up to 20 mm)
