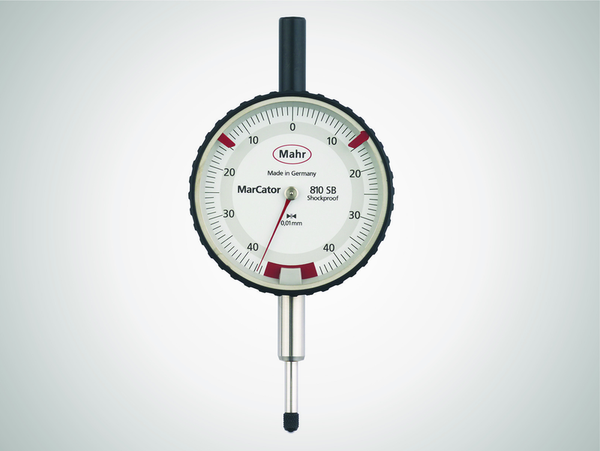

Mahr MarCator 810 SB Safety Dial Indicator - Range: 0.8 mm ; Graduation 0.01mm ; DIN 878 ; Shockproof

Previous Product | Next Product

Product Description

£86.40 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00 Delivery price: £17.00

Safety dial indicator MarCator 810 SB
DIN 878
Measuring span in mm: 0.8mm
Graduation value mm: 0.01
Package contains: case

High contrast dial face
Adjustable tolerance markers
Chrome plated housing
Protection cap on end of measuring pin
Limited measuring range to ensure readings without mistakes
Large free stroke, e.g. to make it easier to insert testpieces into measuring devices
Precision gears and pinions

Measuring span in mm	0.8 mm
Product type	810 SB
Graduation value mm	0.01
Standard	DIN 878
Figur on dial face	40 - 0 - 40
Range per rev. in mm	0.8 mm
Error limit measuring range µm	7 µm
Error limit 1/2 revolution µm	6 µm
Error limit 1/10 revolution µm	5 µm
Measuring value hysteresis fu (µm)	3 µm
Repeatability fw (µm)	3 µm
Overtravel mm	9 mm
Dial color	White
Dimensions	a 58 mm \| b 23 mm \| c 7.5 mm \| d 52 mm \| e 120 mm \| f 22 mm \| g 15 mm
