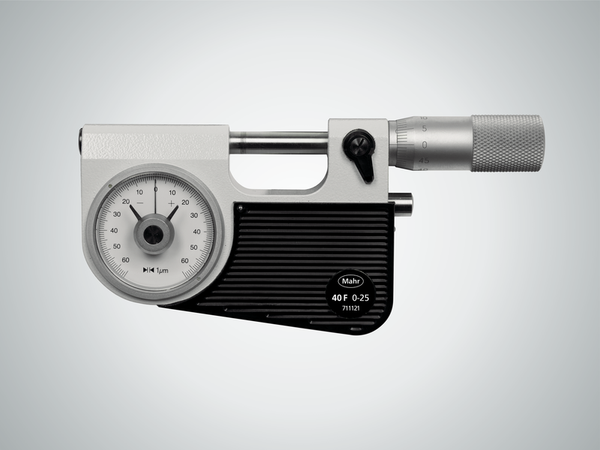

Mahr Micromar 40 F Micrometer (with integrated dial comparator) 0-25mm

Previous Product | Next Product

Product Description

£904.50 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £5.99 Delivery price: £17.00

Operating and display units with satin chrome finish
Dial comparator is integrated in frame
Adjustable tolerance markers
Chrome plated steel frame, heat insulated
Retraction of the movable anvil ensures maximum wear resistance
Spindle and anvil are carbide-tipped
Stainless spindle is hardened throughout and ground
Locking device
Constant measuring force

Standard	Factory standard
Measuring range mm	0 - 25
Material Contact surface	carbide
Graduation value mm	0,01
Error limit µm	2 µm
Parallel error in µm	1 µm
Flatness in µm	0.2 µm
Spindle diameter	7.5 mm
Spindle thread pitch_mm	0.5 mm
Dial color	White
Figur on dial face	65-0-65
Graduation value µm	1 µm
Measuring force	9 N
Measuring force (N)	9
Error limit Ge (µm)	1 µm

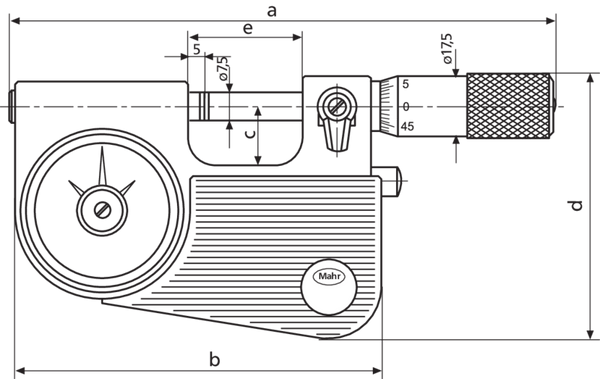

Dimensions	a 149 mm \| b 100 mm \| c 16 mm \| d 71 mm \| e 32 mm \|
