Kafer Pocket Dial Thickness Gauge J 15 | Reading - 0.01mm | Range - 10mm

Previous Product | Next Product

Product Description

£112.32 (ex VAT)

Usually ships in: 7-10 days

Delivery price: £8.99

About these Products:

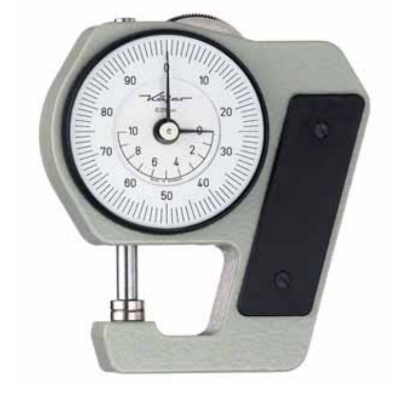

The Pocket Dial Thickness Gauge J 15 is light and handy. Solidly made, it has a wide application for measuring accurately within its measuring range of 10mm.

Pocket Dial Thickness Gauge J 15

KAFER Ref: 20009

Reading: 0.01mm

Range: 10mm

The contact points are in contact when the Pocket Dial Thickness Gauges J 12 and J 15 are not in use. The serrated lifting wheel opens them for the insertion of the component. The size can be easily read off the scale. The instruments can be zeroed by using the knurled adjusting bezel.

Standard contact points 6.35 mm Ø will be supplied unless otherwise stated on the order. The optional contact points are available on request. The type of the contact point does not affect the price of the Pocket Dial Thickness Gauges. Please note that the contact points are not interchangeable. A special version of the model J 15 for checking of drill core diameters up to max. 4 mm is equipped with contact points made of tungsten carbide according to drawing 791030/3.
