Magnetic Individual V-Block - 6890 Series (Insize)

Previous Product | Next Product

Product Description

£80.00 (ex VAT)

Usually ships in: 10-14 days

Delivery price: £8.99

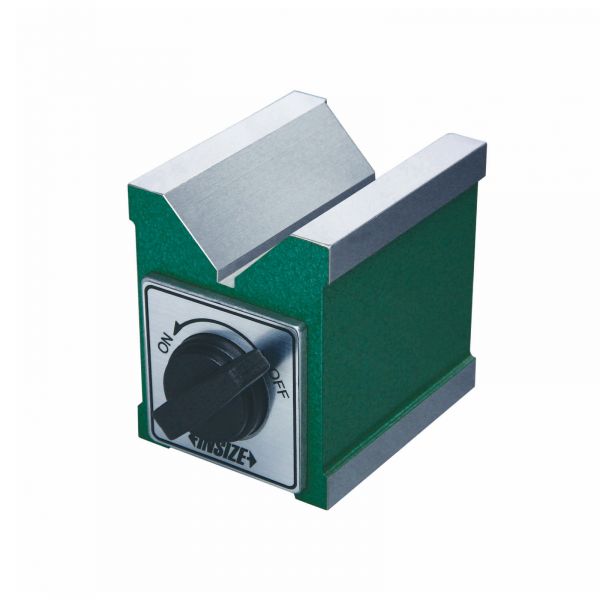

The Insize 6890 Magnetic V-Block can clamp cylindrical workpieces for precision inspection and machining, can be mounted vertical or horizontal. With a singular V-groove you have a clamping range upto 44mm.

Parallelism of V-groove to top, bottom, left and right sides 0.01mm.
Squareness of V-groove to back side 0.01mm.
Supplied in single pieces.
Not hardened.
Magnetic force 56kgf.
Not suitable for cast iron surface plates.

Size (LxWxH)	70x60x73mm
Brand	Insize
Product Range	V Blocks
Product Group	MTIN
Individual or Set	Individual
Range of Shafts	6-44mm
Magnetic Force	56kgf
Squareness	0.01mm
Type	Magnetic
Cutwel Sku	6890-702
