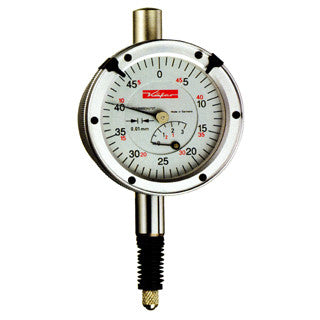

Kafer KM4/5SW DTI 0.01mm Range 5mm Bezel 44.5mm Water/Shock Proof

Product Description
£99.00 (ex VAT)
Usually ships in: 10-14 days
Delivery price: £5.99

Spindle and stem are made of resistant stainless steel.

Dimensions and accuracy according to DIN EN ISO 463 /

Manufacturing standard 0.0500.9.0001

Excellent German quality that we can repair.

Due to their high-class impact protection the Small Dial Gauges KM4SW and KM4/5SW offer an extremely long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear. These Dial Gauges are robust in operation. Their precision is maintained with practically no limitations.

Products specifications

Reading 0.01mm
Range (millimetres) 5mm
Range per revolution 0.5mm
Bezel 44.5mm
Stem 8 h 6
Dimensions & accuracy according to DIN 878
Spindle Lapped

Need help, advice or more information?

EMAIL US for a fast, friendly response from an engineer

or call 01727 822 462
