A thread gauge is used to check the dimensions of a specific thread form angle, pitch and diameter.
Plug gauges are used to check internal threads, whereas ring gauges are used to check external threads.
Each gauge comprises of two parts: a GO gauge and a NO GO gauge. Both parts should be used to check the thread.
If you are machining a component with an external thread – you would use both a GO and a NO GO ring gauge. The GO gauge will screw on to the part. The NO GO gauge should not screw on to the part.
For a thread to be within its permissible dimensions, a GO plug gauge should screw into an internal thread and a NO GO should not screw into it.
Thread Gauges
Sortuj według:
Napisz do nas, aby zamówić

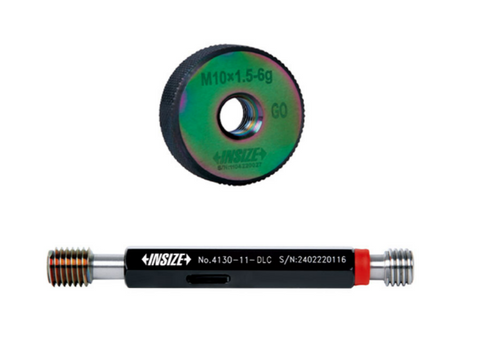

DLC Coated Thread Ring Gauges And Plug Gauges | 4120/4121/4130/4131/4129/4139 | Insize
Ring Gauge
Price on Application
Napisz do nas, aby zamówić

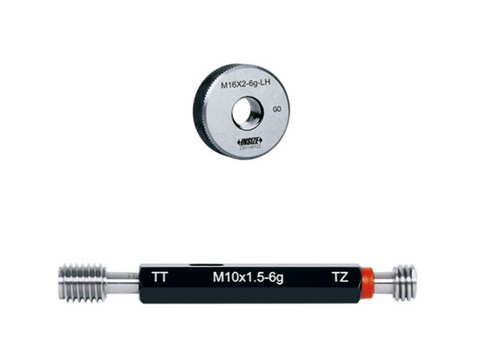

Left Hand Thread Ring Gauges & Plug Gauges | 4130/4120/4139/4129/4131/4121 | Insize
Ring Gauge
Price on Application
