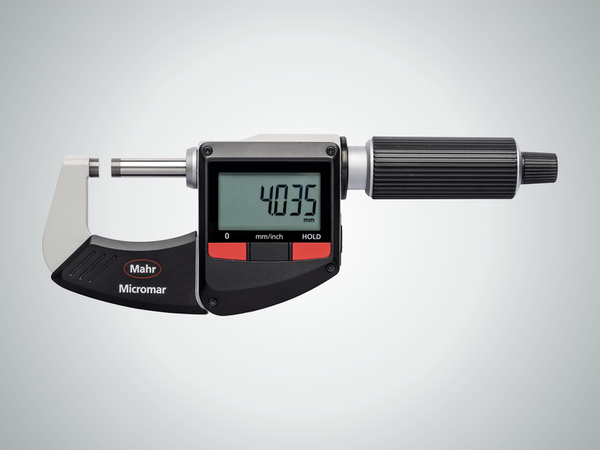

Mahr Micromar 40 ER IP40 Micrometer 0-25mm/0-1"

Product Description
£172.80 (ex VAT)
Usually ships in: 10-14 days
Delivery price: £5.99 Delivery price: £17.00
  • High contrast digit display
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide-tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated
Standard Factory standard
Measuring range mm 0 - 25
Measuring range inch 0 - 1"
Material Contact surface carbide
Resolution mm/inch 0.001 / .00005"
Error limit µm 2 µm
Battery type CR 2032 (3V Lithium)
Spindle diameter 6.5 mm
Spindle thread pitch_mm 0.5 mm
Measuring force (N) 5 - 10

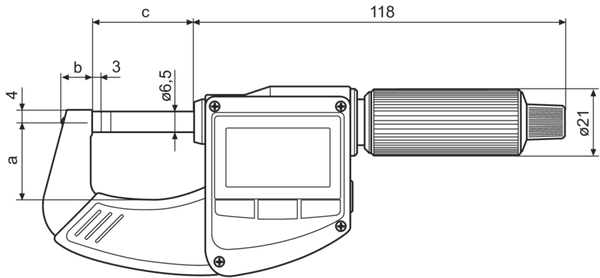

Dimensions a 24 mm | b 9.5 mm | c 32 mm |
