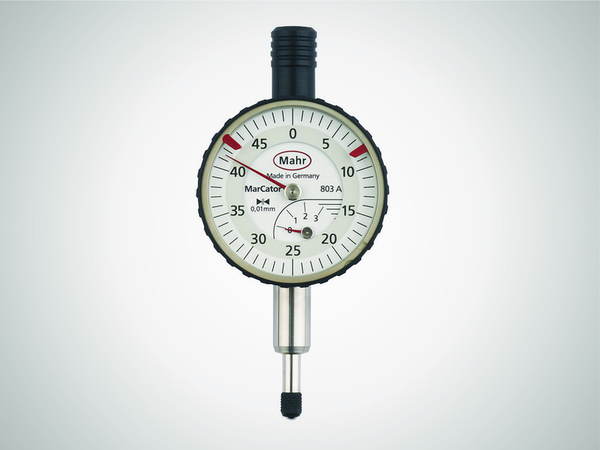

Mahr MarCator 803 A Small Dial Indicator - Range: 3mm ; Graduation 0.01mm ; DIN 878

Product Description
£58.05 (ex VAT)
Usually ships in: 10-14 days
Delivery price: £5.99 Delivery price: £17.00 Delivery price: £17.00
  • Small dial indicators MarCator 803 A
  • DIN 878
  • Measuring span in mm: 3mm
  • Graduation value mm: 0.01
  • Package contains: case
  • High contrast dial face
  • Adjustable tolerance markers
  • Chrome plated housing
  • Lifter protection cap on the measuring spindle
  • Precision gears and pinions
Measuring span in mm 3 mm
Product type 803 A
Graduation value mm 0.01
Standard DIN 878
Figur on dial face 0 -50
Range per rev. in mm 0.5 mm
Error limit measuring range µm 10 µm
Error limit 1 revolution µm 9 µm
Error limit 1/2 revolution µm 8 µm
Error limit 1/10 revolution µm 5 µm
Measuring value hysteresis fu (µm) 3 µm
Repeatability fw (µm) 3 µm
Overtravel mm 0.1 mm
Scale diameter 34 mm
Dial color White
Dimensions a 40 mm | b 20.6 mm | c 6.8 mm | d 37 mm | e 83 mm | f 15 mm | g 8 mm
