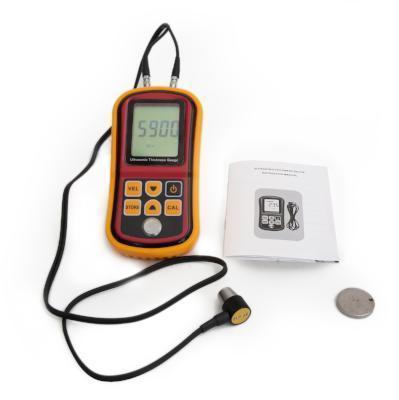

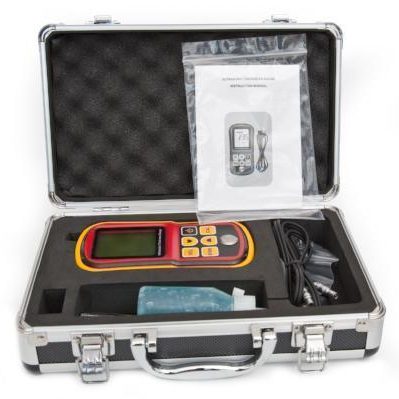

DUT10 0.1mm Ultrasonic Thickness Gauge 1.2-225mm

Product Description
$141.00 (ex VAT)
Usually ships in: 2-3 days Please email us for shipping times

DM Ultrasonic thickness gauges offer a great alternative when conventional thickness gauges can’t do the job. These gauges are ideal for measuring the thickness of pipes, tanks and sheet material.

Thickness Gauge Features

  • Unit: mm
  • Resolution: 0.1mm
  • Range 1.2 – 225mm (Steel)
  • Accuracy: ±1% + 0.1mm
  • Working Frequency: 5MHz
  • Sound Velocity Range: 1000 – 9999m/s

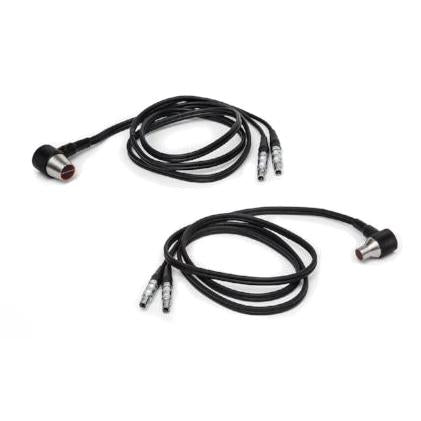

  • 10 mm transducer
  • Auto linear compensation
  • Data storage
  • Minimum Limit for tube measurement:
    • 10mm transducer: Φ20 x 3.0mm
  • Coupling indicator
  • Battery life meter
  • LCD backlight
  • Lubricant (Included)
  • Power: 1.5V AAA Batteries (Included)
