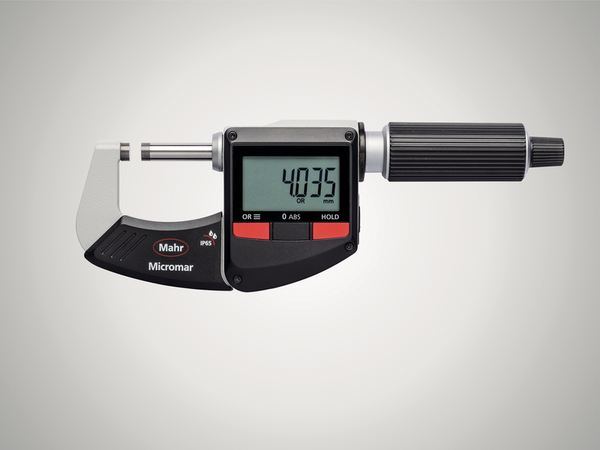

Mahr Micromar 40 EWR IP65 Micrometer: 0-25mm, 0-50mm

Product Description
£215.10 (ex VAT)
Usually ships in: 2-3 days
Delivery price: £5.99 Delivery price: £17.00 Delivery price: £17.00
  • High contrast digit display
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide-tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated

0-25mm/0-1":

Standard Factory standard
Measuring range mm 0 - 25
Measuring range inch 0 - 1"
Material Contact surface carbide
Resolution mm/inch 0.001 / .00005"
Error limit µm 2 µm
Battery type CR 2032 (3V Lithium)
Spindle diameter 6.5 mm
Spindle thread pitch_mm 0.5 mm
Measuring force (N) 5 - 10
Dimensions a 24 mm | b 9.5 mm | c 32 mm |



25-50mm/2-3":

Standard Factory standard
Measuring range mm 25 - 50
Measuring range inch 1 - 2"
Material Contact surface carbide
Resolution mm/inch 0.001 / .00005"
Error limit µm 2 µm
Battery type CR 2032 (3V Lithium)
Spindle diameter 6.5 mm
Spindle thread pitch_mm 0.5 mm
Measuring force (N) 5 - 10
Dimensions a 36 mm | b 11 mm | c 57 mm |
