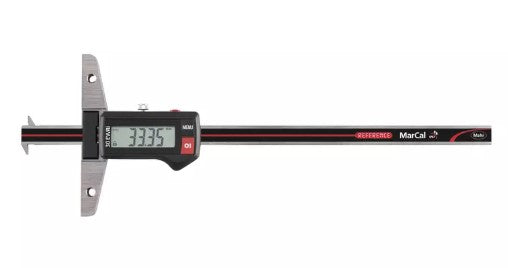

Mahr MarCal 30 EWR-D IP67 Digimatic Digital Depth Gauge: 0-200mm, 0-300mm

Product Description
£585.90 (ex VAT)
Usually ships in: 10-14 days
Delivery price: £17.00 Delivery price: £8.99

Please select caliper size above:

  • Digital depth gage MarCal 30 EWR-D
  • Measuring range mm: 0 - 200 mm, 0-300mm
  • Resolution mm/inch: 0.01 mm / 0.0005 inch
  • Data interface: USB, Opto RS-232C, Digimatic
  • IP protection category: IP 67
  • Package contains: battery, instruction manual, case
  • High contrast digit display
  • Locking screw above
  • Lapped guideway
  • Measuring surfaces made of steel
  • Slide and beam made of hardened stainless steel
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide

0-200mm/0-8":

Measuring range mm 0 - 200
Measuring range inch 0 - 8"
Resolution mm/inch 0.01 / .0005"
Standard Factory standard
Error limit (mm) 0.03 mm
Error limit inches .001"
Battery type CR 2032 (3V Lithium)

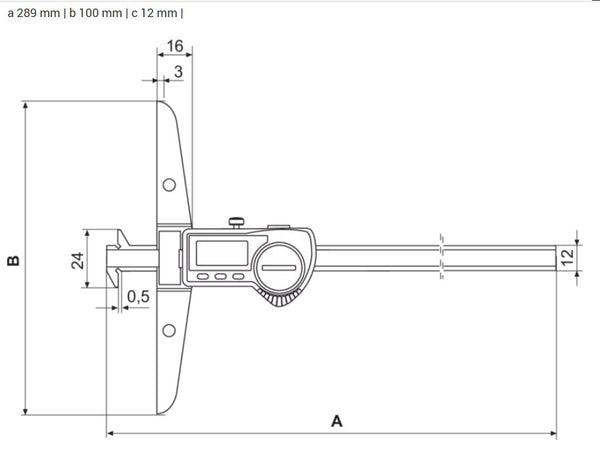

Dimensions a 281 mm | b 100 mm | c 12 mm |



0-300mm/0-12":

Measuring range mm 0 - 200
Measuring range inch 0 - 8"
Resolution mm/inch 0.01 / .0005"
Standard Factory standard
Error limit (mm) 0.03 mm
Error limit inches .001"
Battery type CR 2032 (3V Lithium)
Dimensions a 281 mm | b 100 mm | c 12 mm |
